Sharp codes, right on the line.
The COEX TIJ coding printer puts best-before dates, batch numbers, barcodes and QR codes straight onto your packaging or label. Thermal inkjet up to 600 DPI, on cardboard, plastic, metal, glass, film and wood. STC supplies the printer as a complete set and can help with installation if you wish.
Built for codes that have to be right
Sharp up to 600 DPI
Alphanumeric text, linear and GS1 barcodes, 2D and QR codes, logos and variable data such as dates and batch numbers.
Keeps up to 200 m/min
A light sensor detects the product and the encoder measures the belt speed, so the code lands in the right place at the right length.
Up to 100 mm print height
Connect up to four print heads of 12.7 or 25.4 mm high. A single print can be up to 3000 mm long.
Easy to operate
Create layouts on the 7-inch touchscreen or load them via USB. Ethernet and RS232 are available to connect to your systems. Aluminium housing.
The ink makes the difference

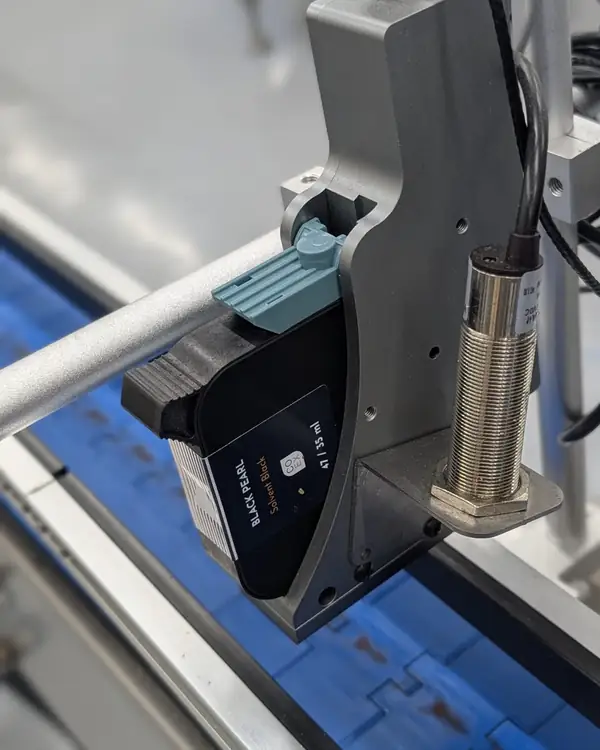

COEX uses HP-certified cartridges filled with 47 ml of its own ink. That is over 10% more than the usual 42 ml, so you change cartridges less often and each one lasts longer.
Even at a lower DPI setting the code stays sharp and easy to scan. That means more codes per cartridge without giving up readability. Black ink is available solvent-based (fast-drying) and water-based; which works best depends on your packaging. The ink adheres to porous and non-porous materials and is smudge-proof and UV-resistant.
You can simply order cartridges from STC.
From belt speed to a readable code

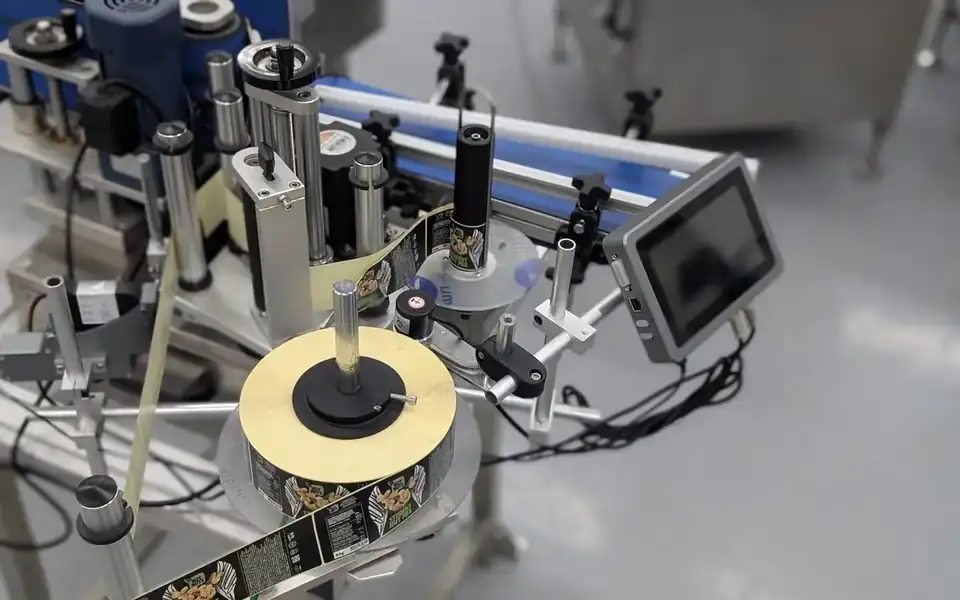

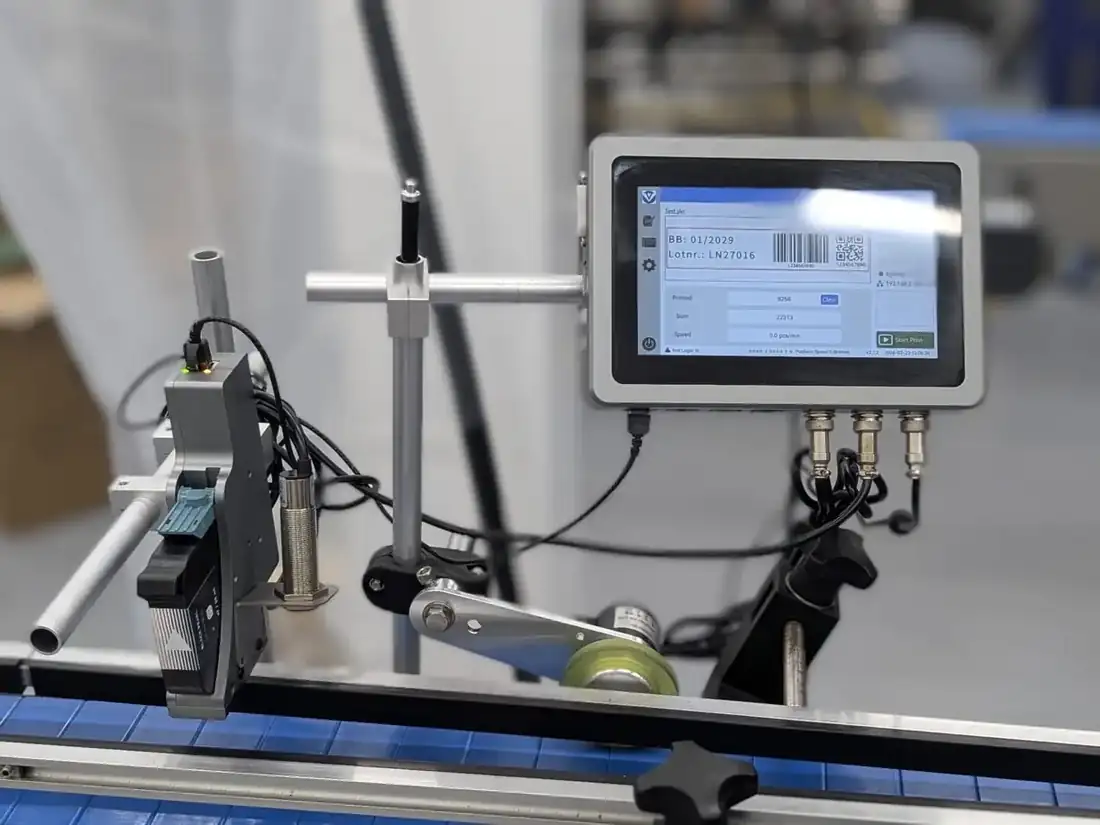

The print head is mounted above or beside your conveyor, or directly on a labelling machine. The light sensor gives the start signal and the encoder keeps the print in step with the belt speed, so the code stays in the same place even when the speed changes.
Would you like us to install and set up the printer? We can; price on request.
What you get
The printer comes as a complete set. Besides the parts below, it includes a cartridge of black solvent ink, a power supply and the connection cables.

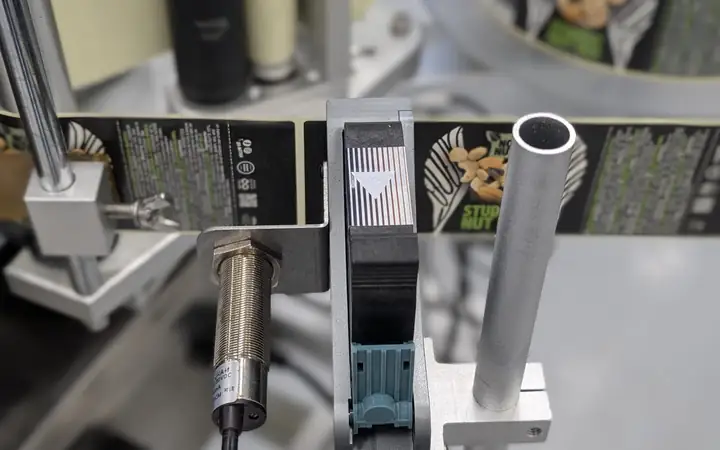

Print head 12.7 mm
Thermal inkjet head for codes up to 12.7 mm high, with a light sensor that detects the product.

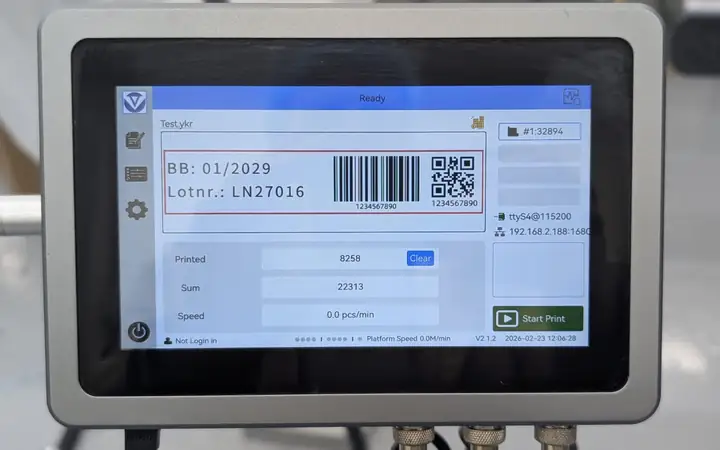

Controller with 7-inch touchscreen
Create and select layouts here and see how many prints have been made. With connections for USB, Ethernet and I/O.
Encoder
Measuring wheel on the belt that passes on the speed, so the print is not stretched or squeezed.

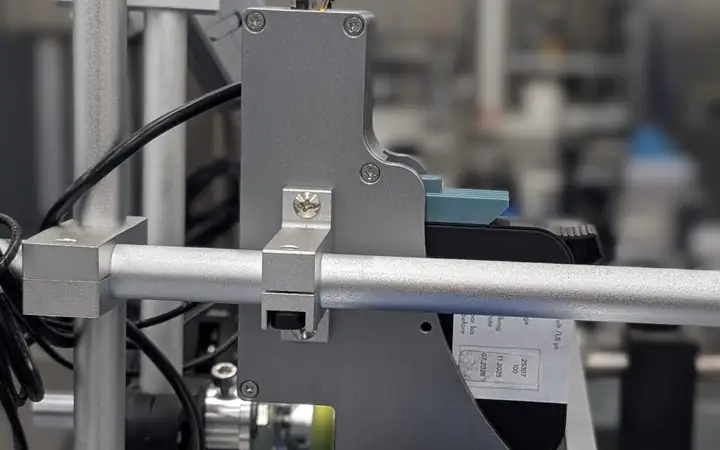

Mounting kit
Stand and clamps to fix the print head, sensor and controller firmly to your line.
Codes on your own packaging?
Tell us what you want to print and on what. We will advise on ink, print height and mounting.
Ask your question
We reply as soon as we can, usually within one working day.
