Specifications


Manufacturer Henkovac
Model Thermoformer
Models TH-320, TH-355 and TH-420
Film width 320, 355 or 420 mm
Stroke 200-470 mm standard, up to 800 mm
Loading station Two to four times the stroke length
Moulds Rigid and flexible film, max forming depth 120 mm
Control Schneider control and electronics, Festo pneumatics
Vacuum pump 100, 160 or 300 m³/h. Oxygen-safe pumps available
Cooling water min. 1.5 bar
Compressed air 8-10 bar
Machine length approx. 4200-5500 mm
Power supply 230/400 V – 3 – 50 Hz
Note Built to specification; dimensions are indicative

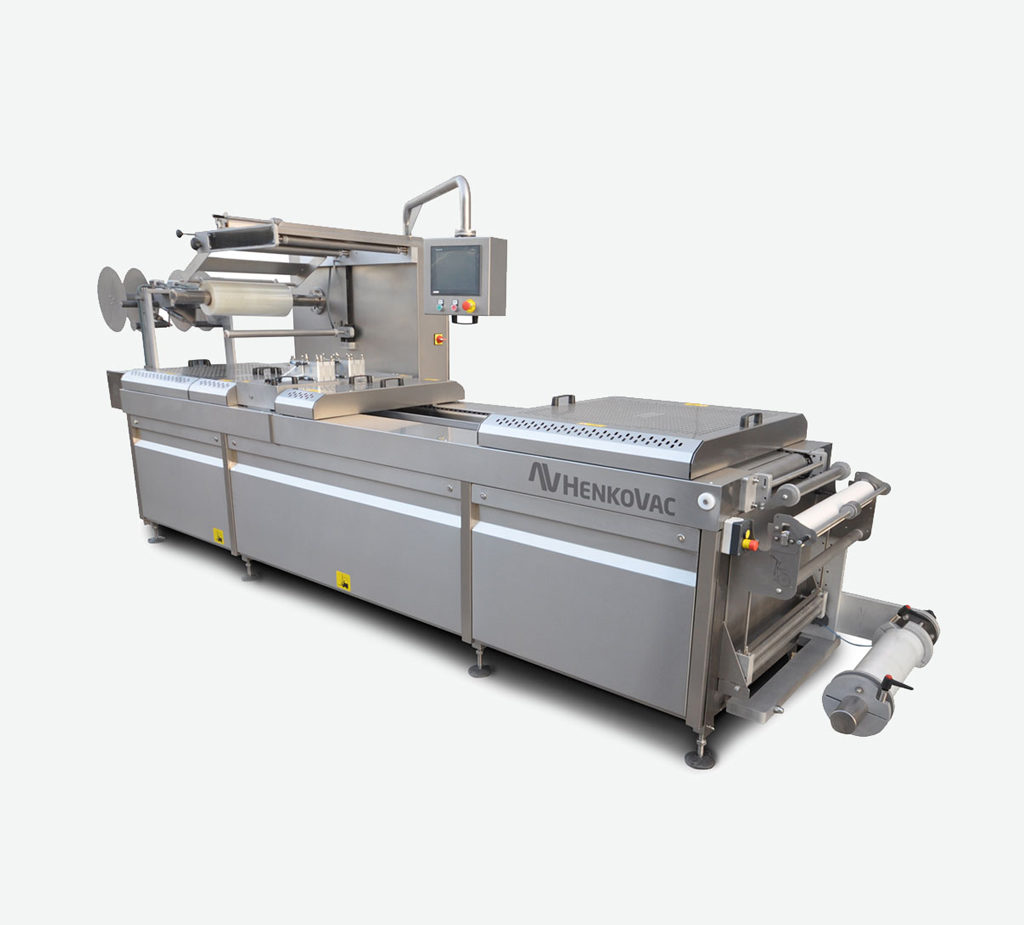

Henkovac Thermoformer

Price on request

Availability New – available to order
Location Emmeloord, Netherlands
Contact

Supplied new by STC Food Solutions. We deliver it, install it and service it afterwards — and your old machine can come off the price.

Options and accessories

Tick what you need. We send the list with your request, so the quotation matches the machine you have in mind.

No options selected — ask us about the standard machine, or tick what you need.

Not sure which options you need? Tell us what you pack and we will put a configuration together with you.

Find the right size

Every model with the sizes that decide between them. Switch range to look at another type of machine.

All Henkovac machines

Key features

  • For flexible and rigid film
  • Display prepared for remote connection over Ethernet
  • Synchronises with a labeller, printer, filler or loading robot
  • Heated control cabinet to keep condensation off the electrics
  • Every part within reach for service and cleaning
