Specifications
| Stock number | 21559 |
|---|---|
| Manufacturer | GEA CFS / Yamato / BluePrint Automation / Rembrandt |
| Model | SmartPacker SX400 Quattro Seal |
| Condition | Used |
| Type | Complete weighing, packaging and case packing line |
| Weigher | Yamato Dataweigh multihead weigher, stainless steel |
| Packaging machine | GEA CFS SmartPacker SX400 (VFFS), Quattro Seal |
| Product handling | BluePrint Automation HVP, built 2003, serial no. V0784, 16 kVA, 230/400 V 50 Hz |
| Case packer | Rembrandt Packaging / Lantech RCE-I-T-M, built 2005, 400 V 50 Hz, 2 kW, 6 bar |

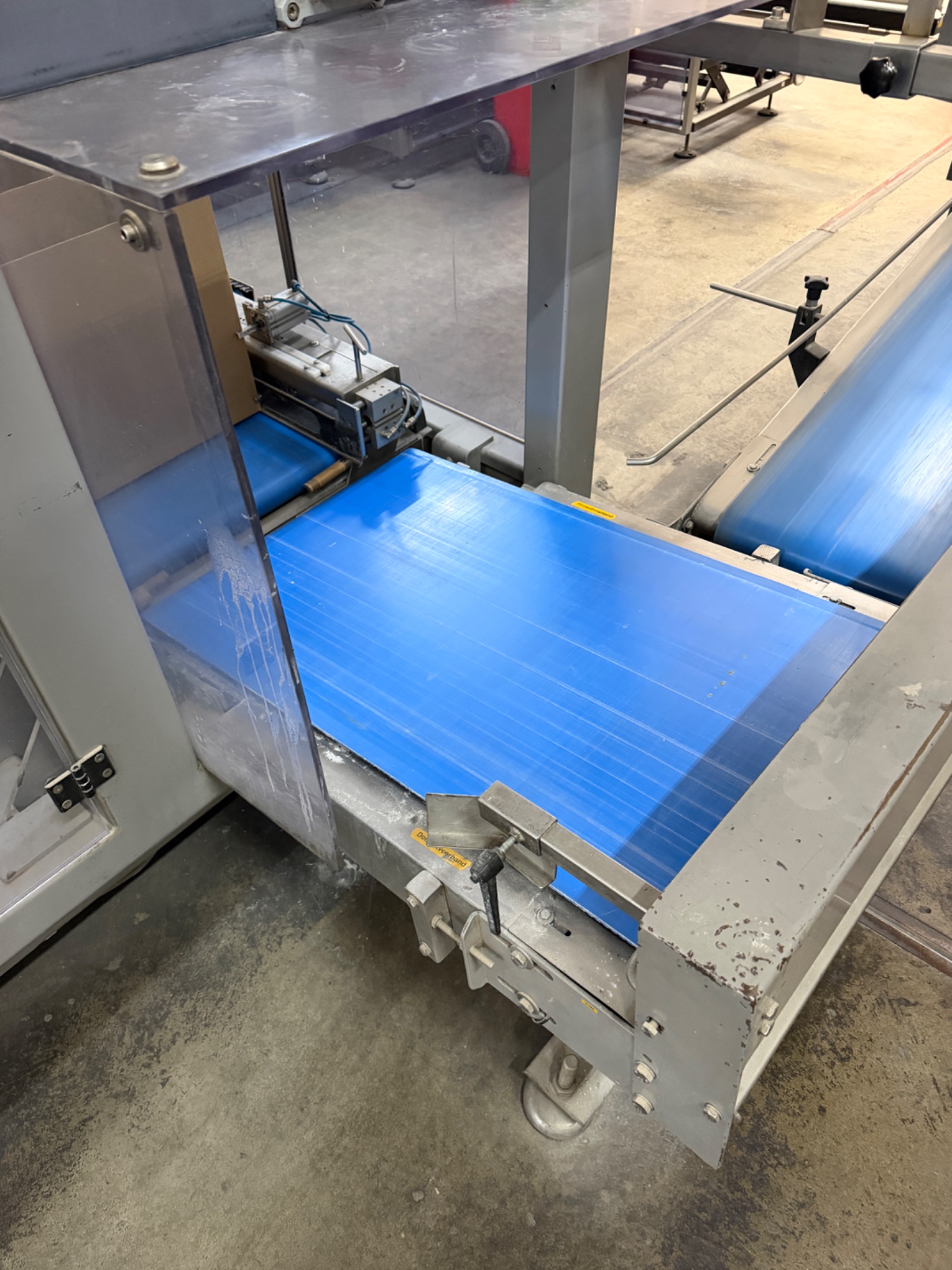

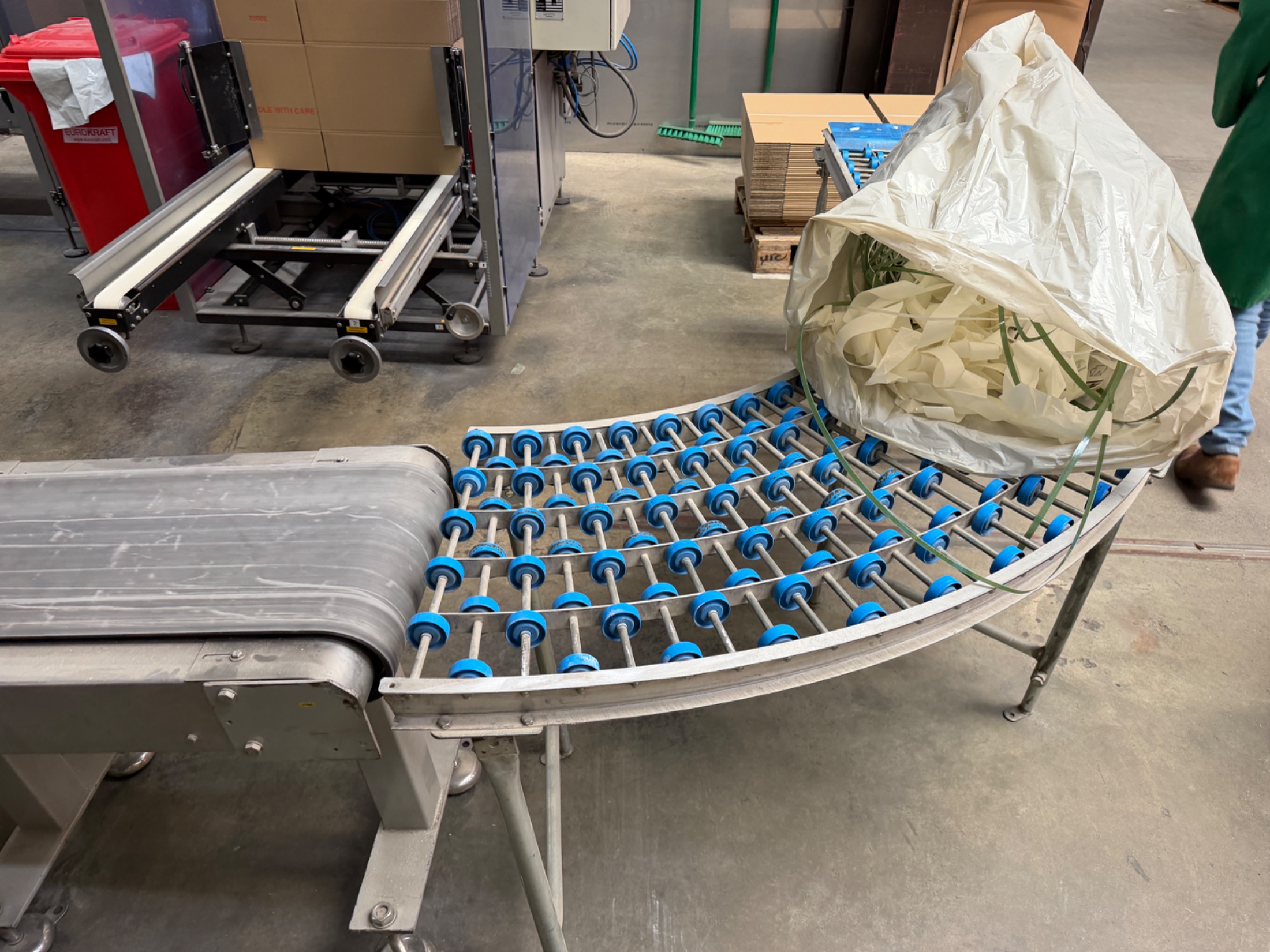

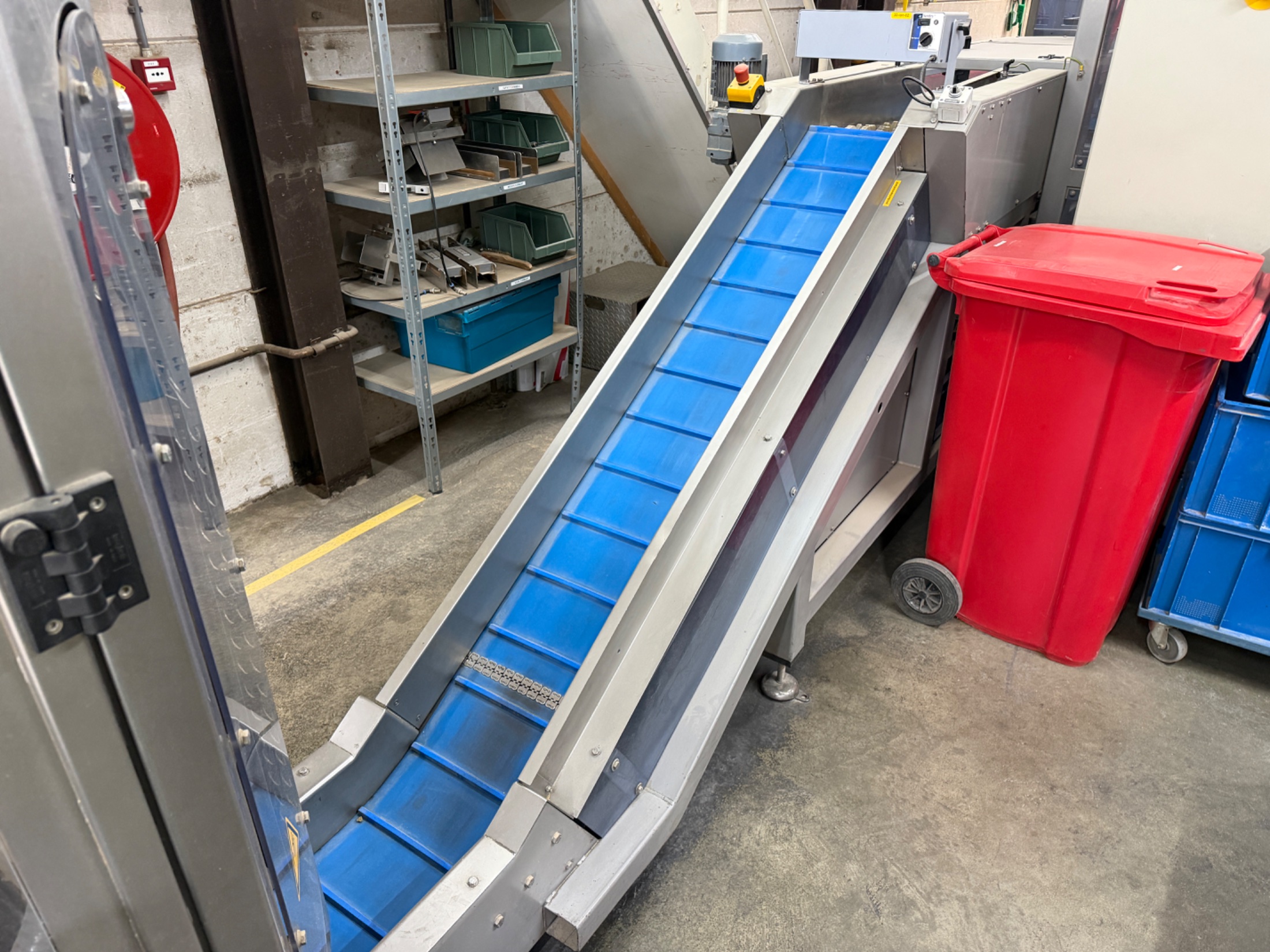

| Conveying | Associated conveyor systems included |
| Suitable for | Dry and free-flowing products, depending on configuration |
| Offered | As a complete set only |
A complete line from weigher to shipping case, offered as one set

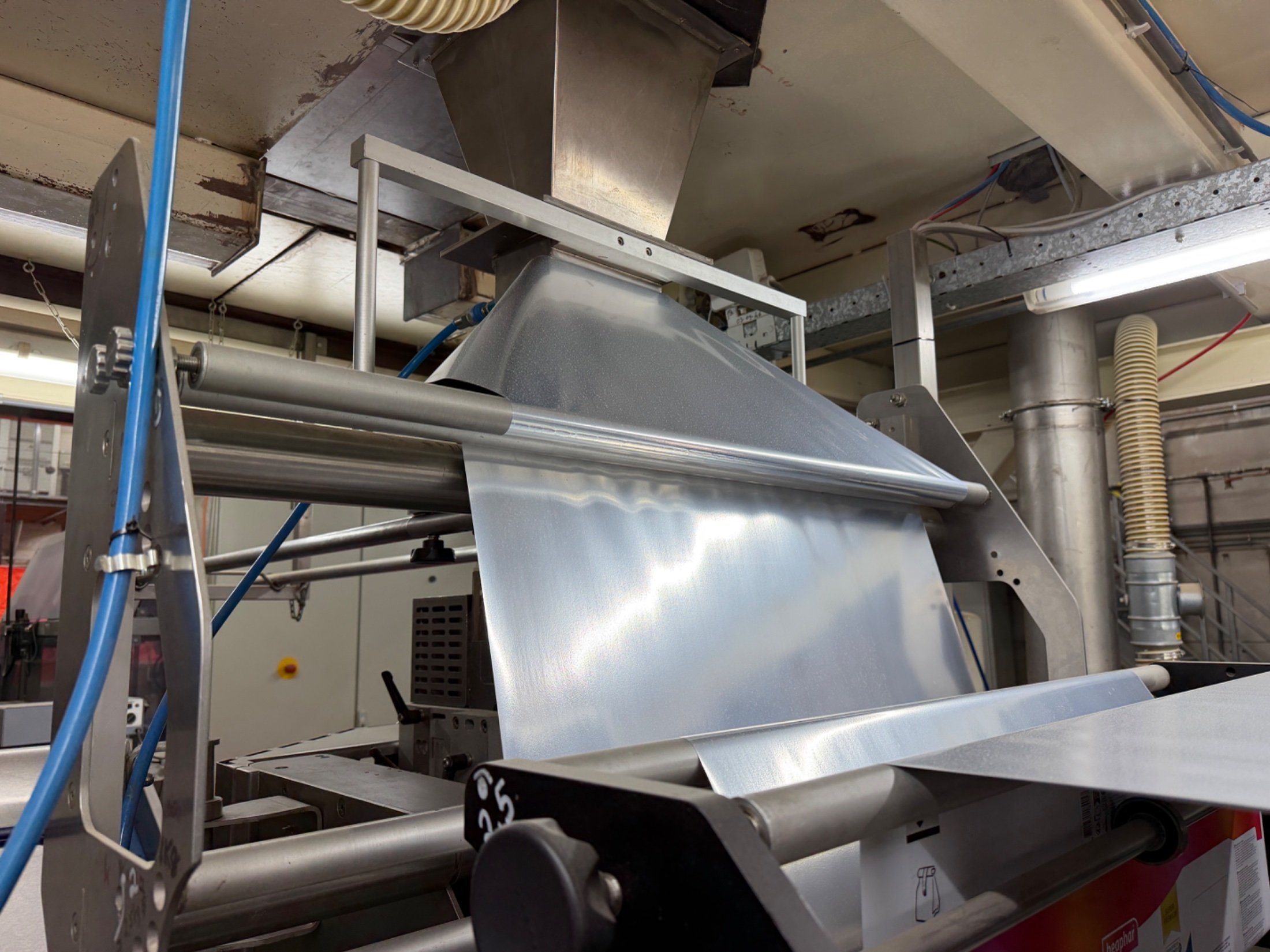

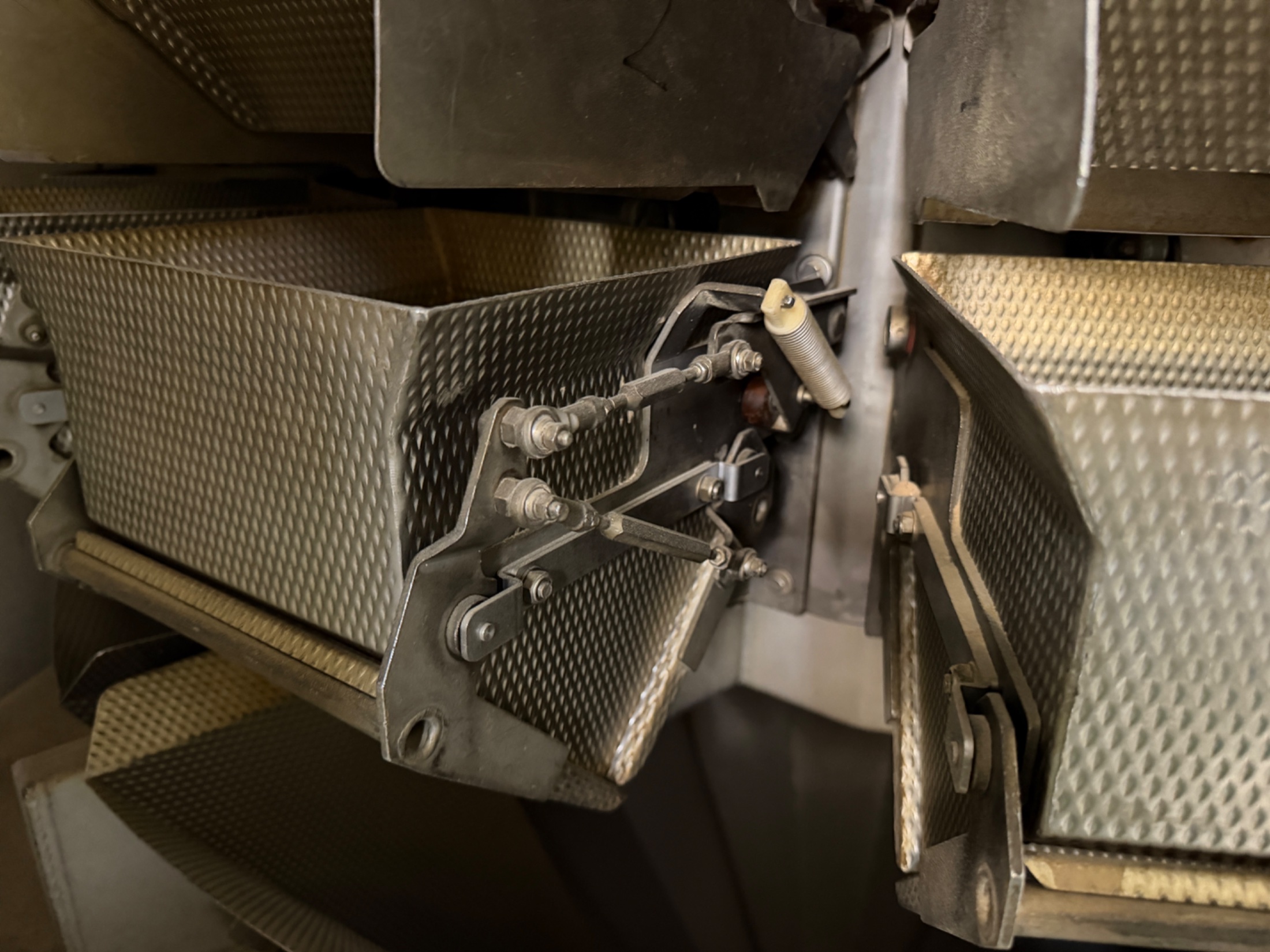

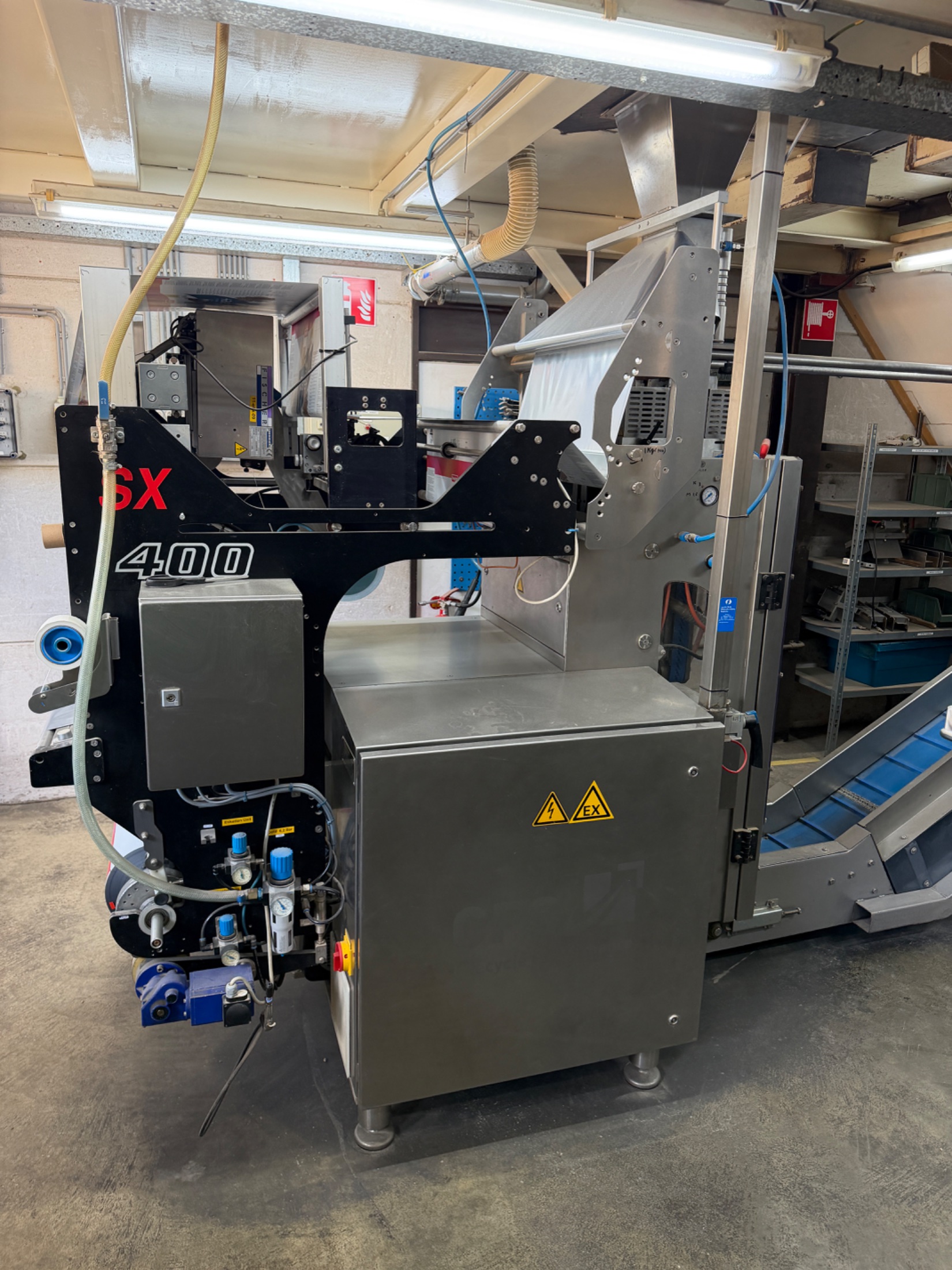

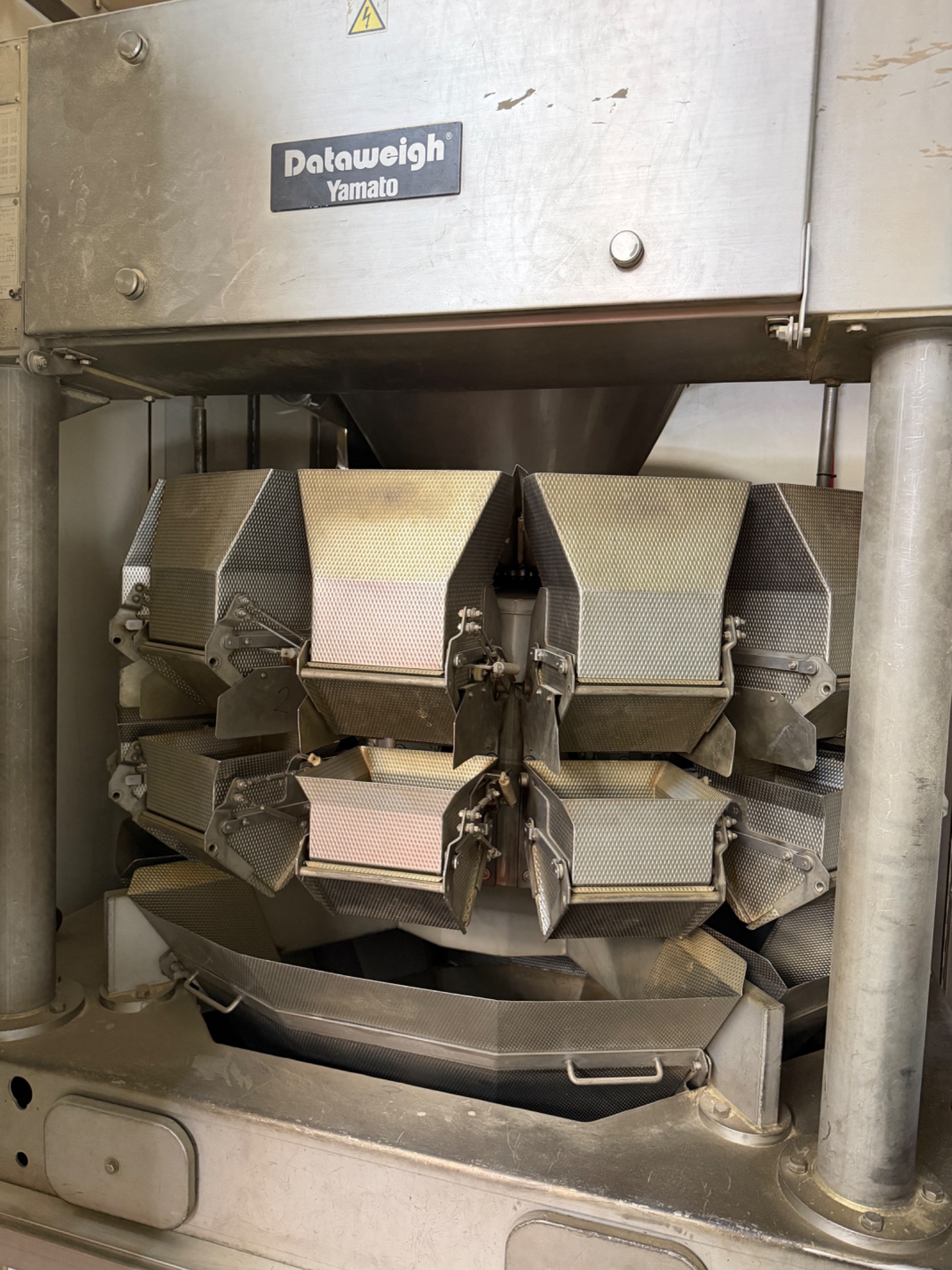

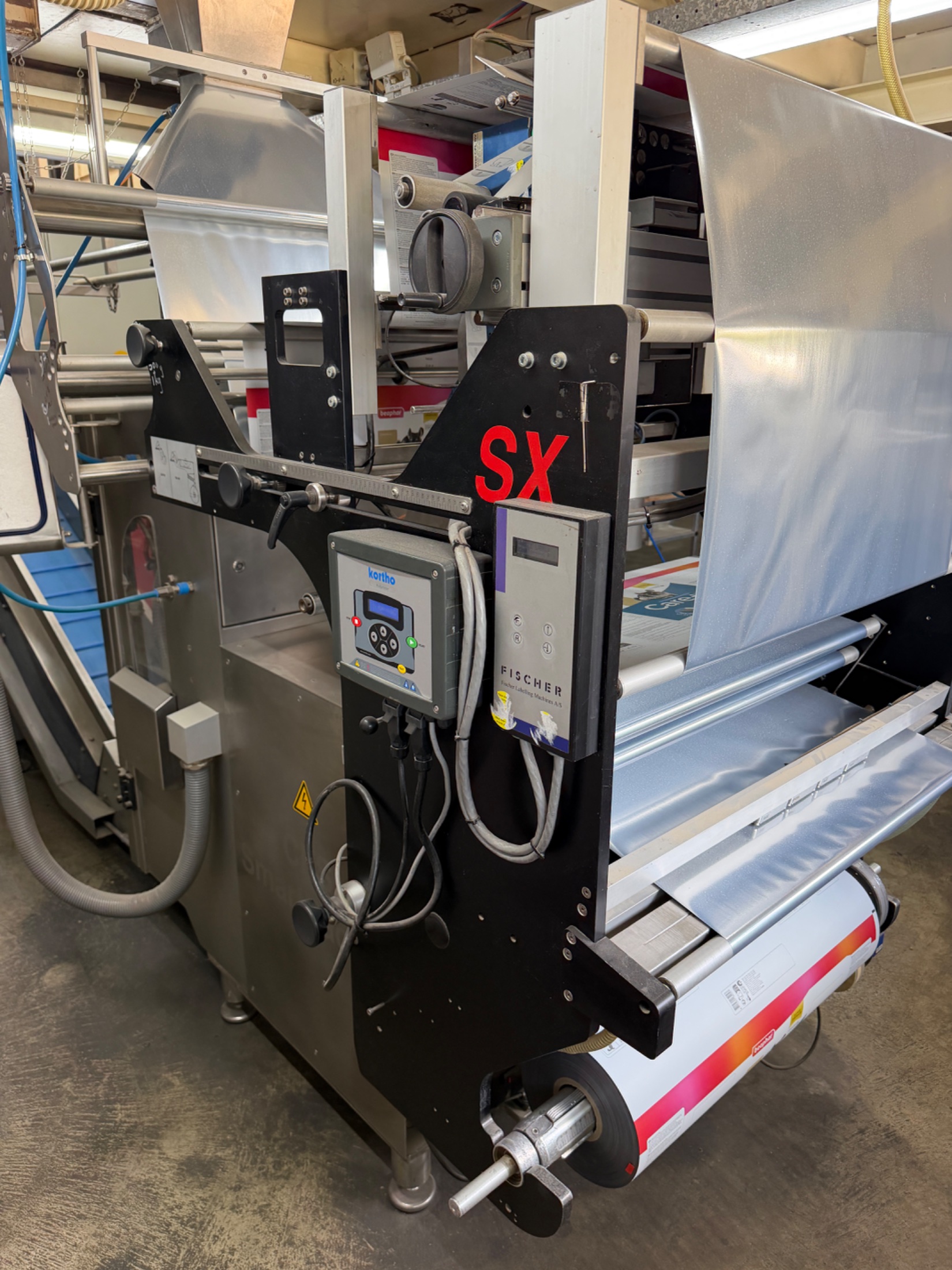

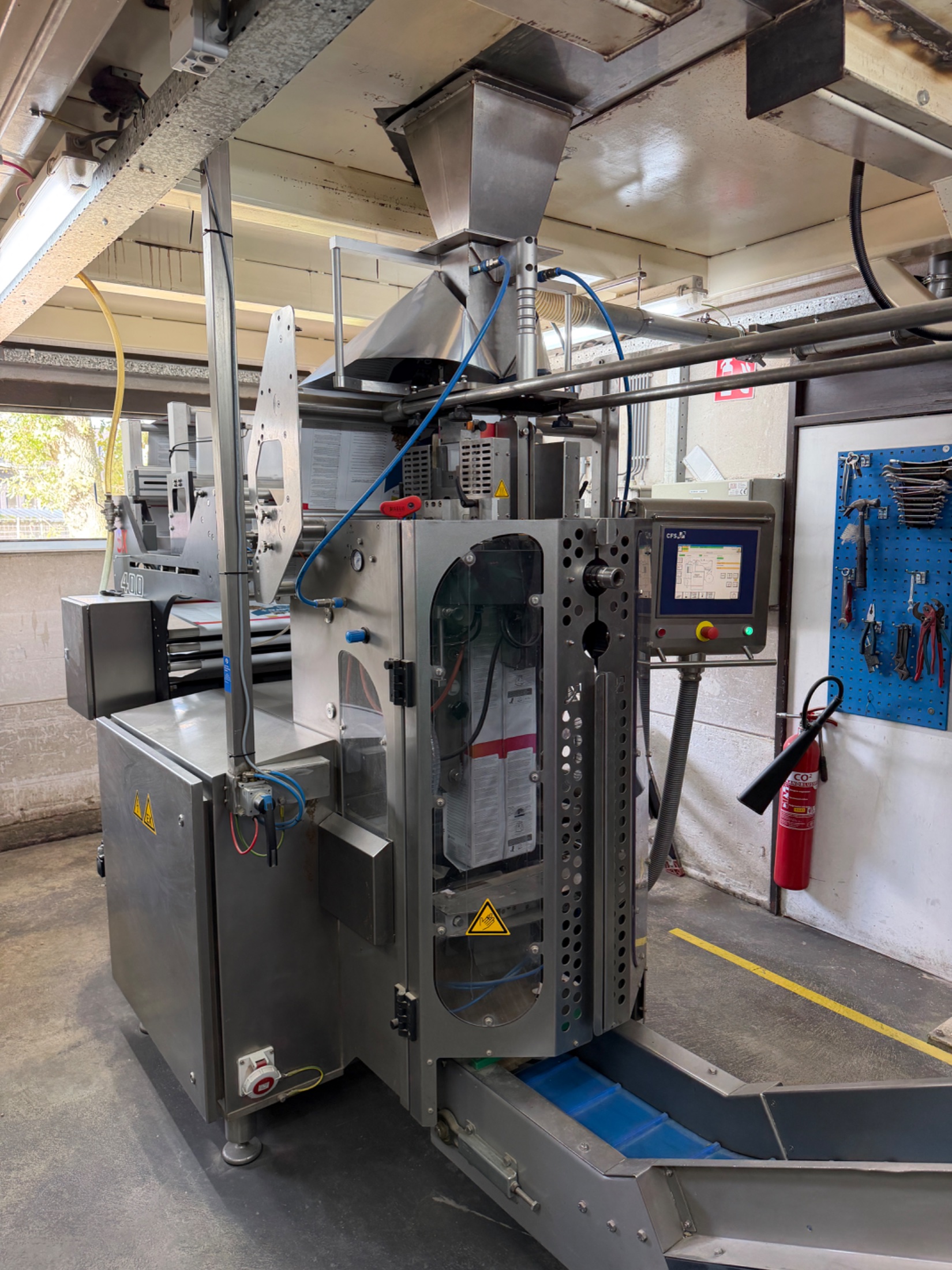

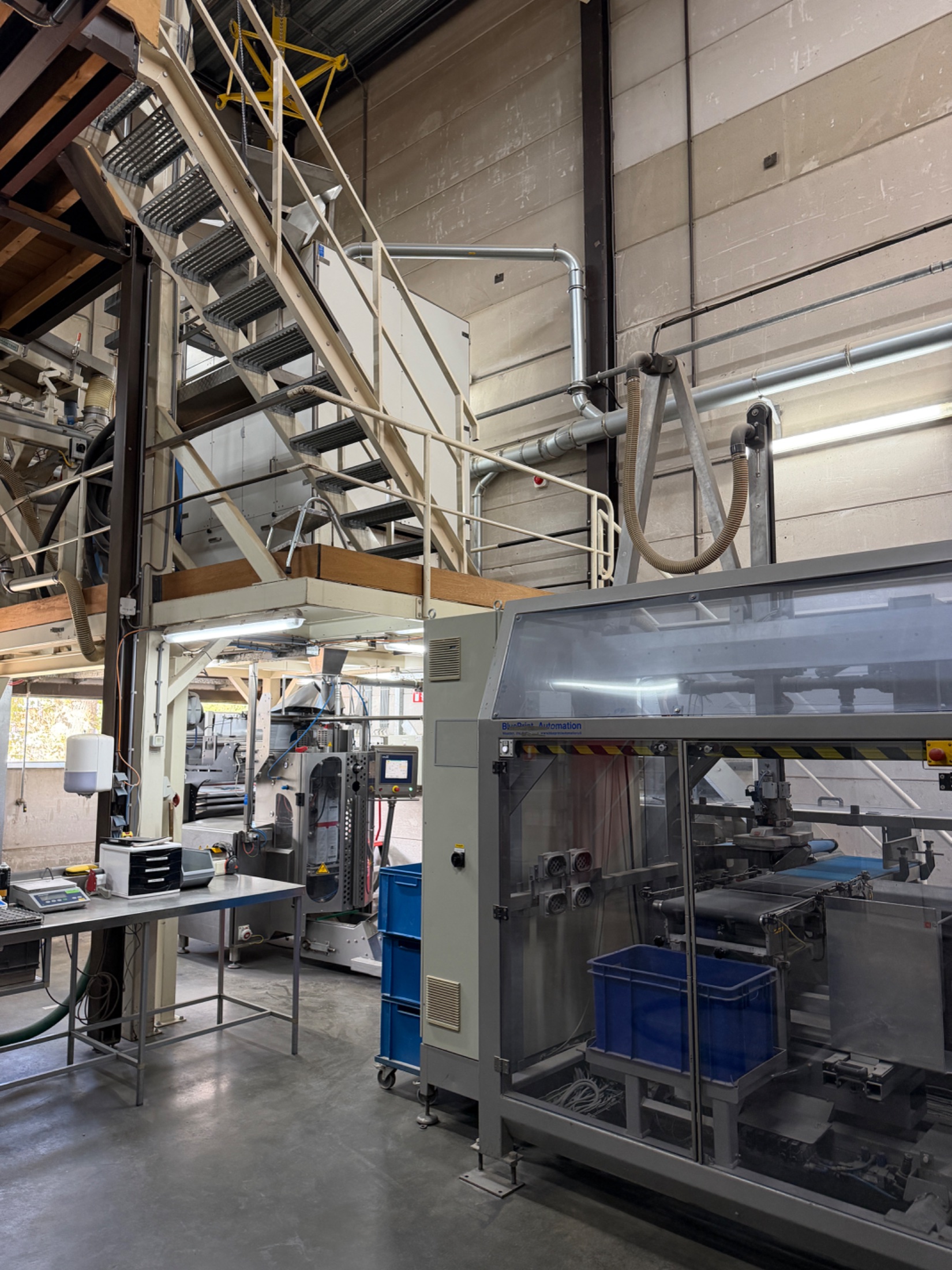

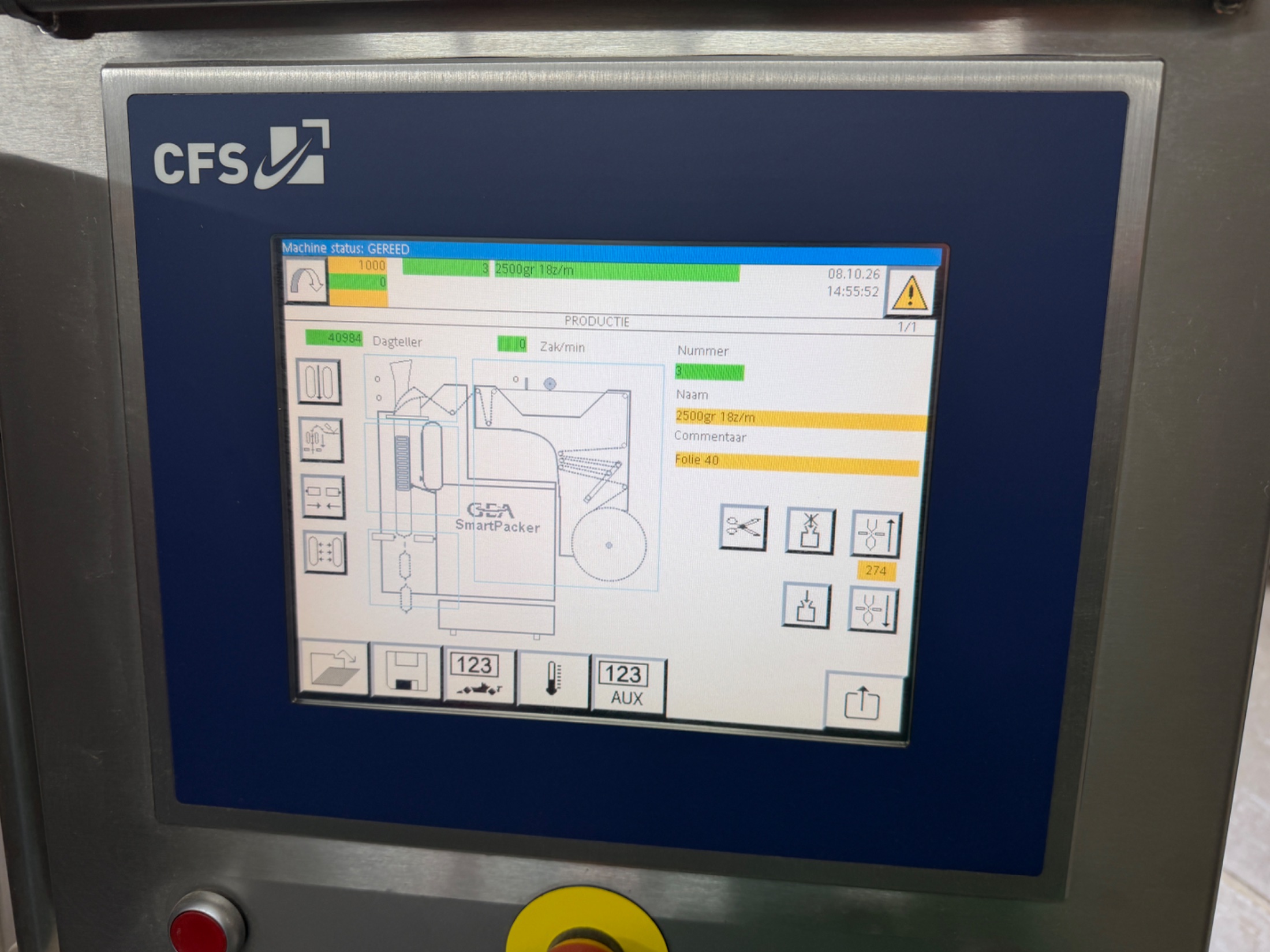

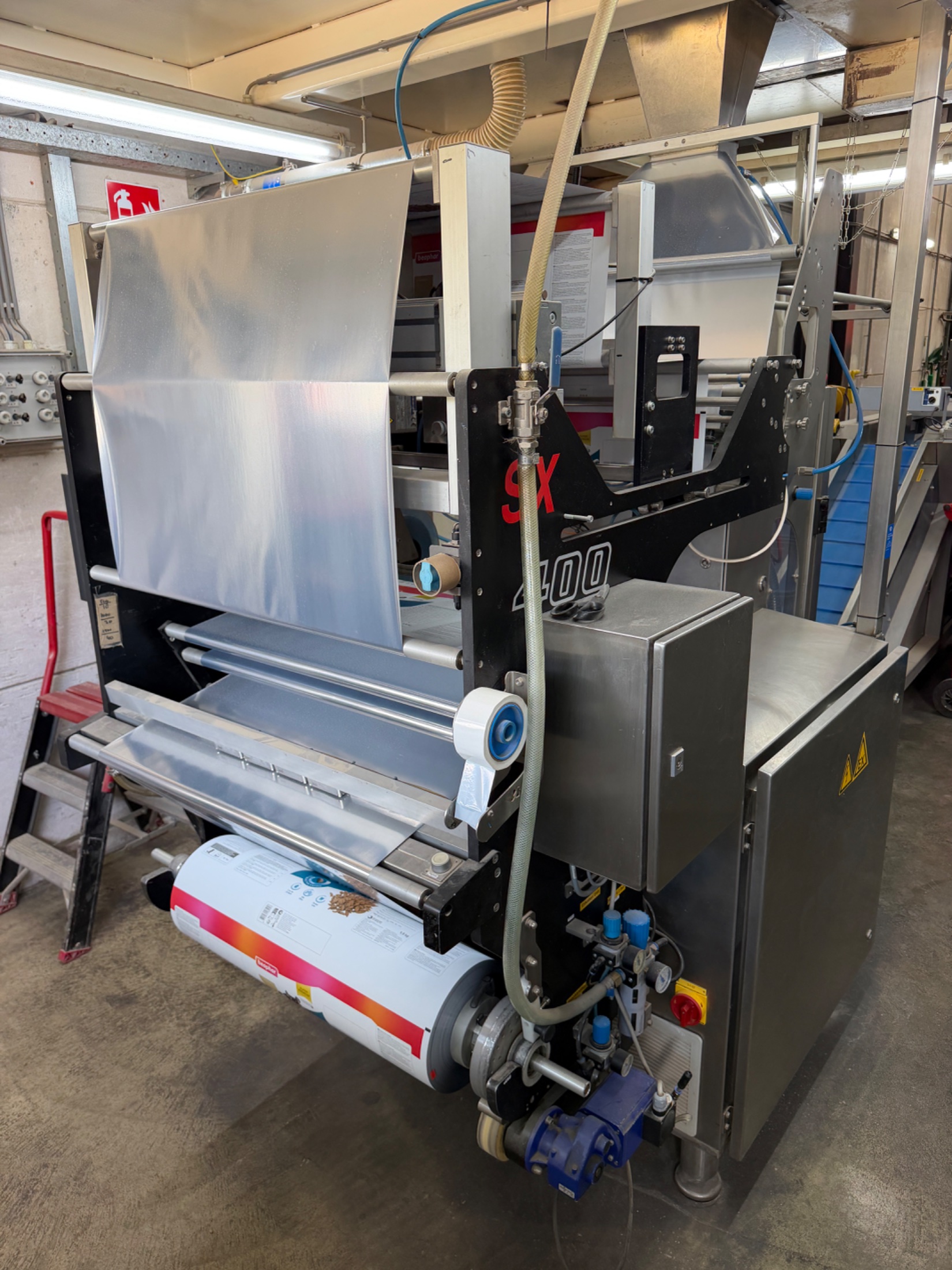

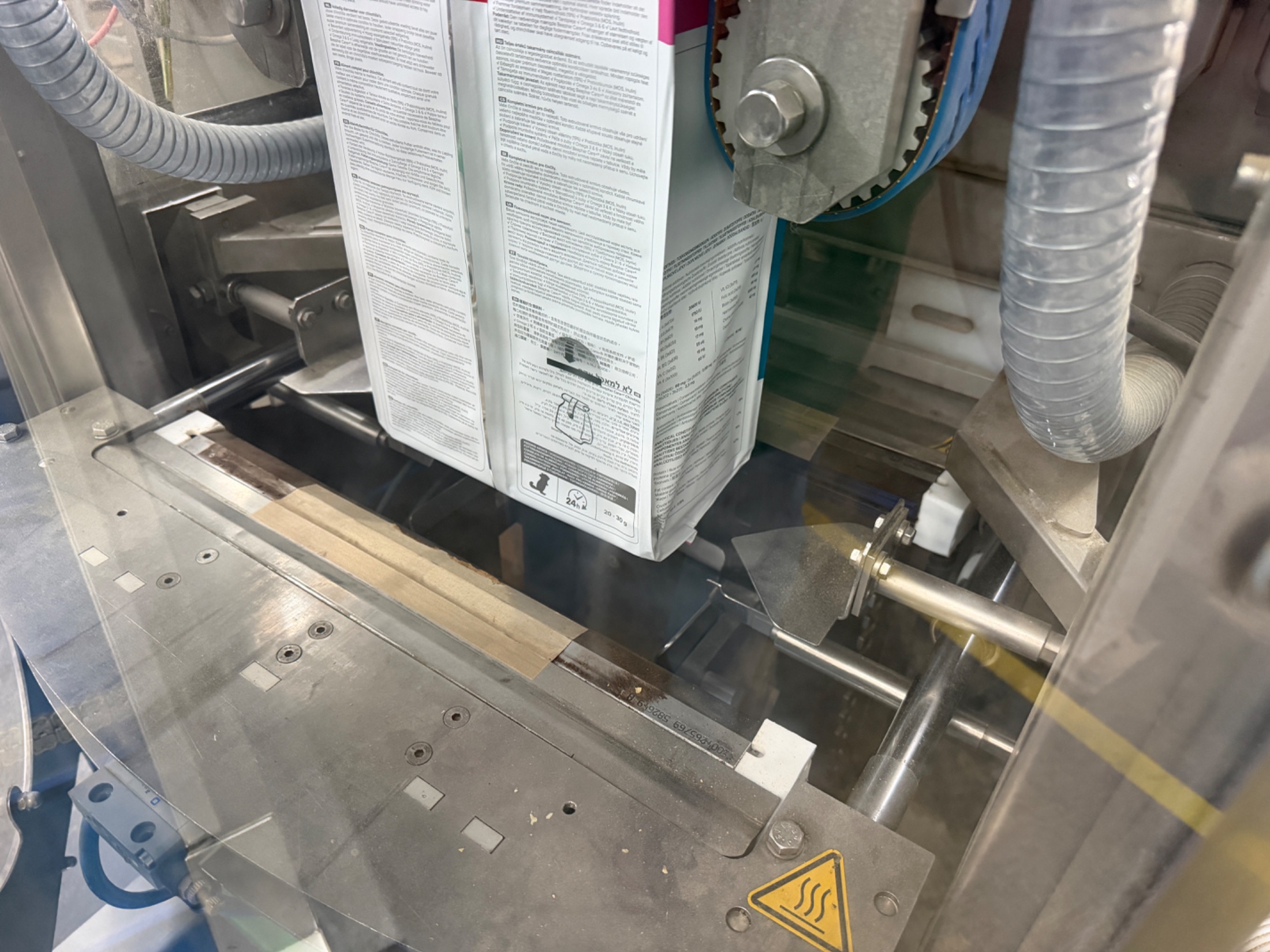

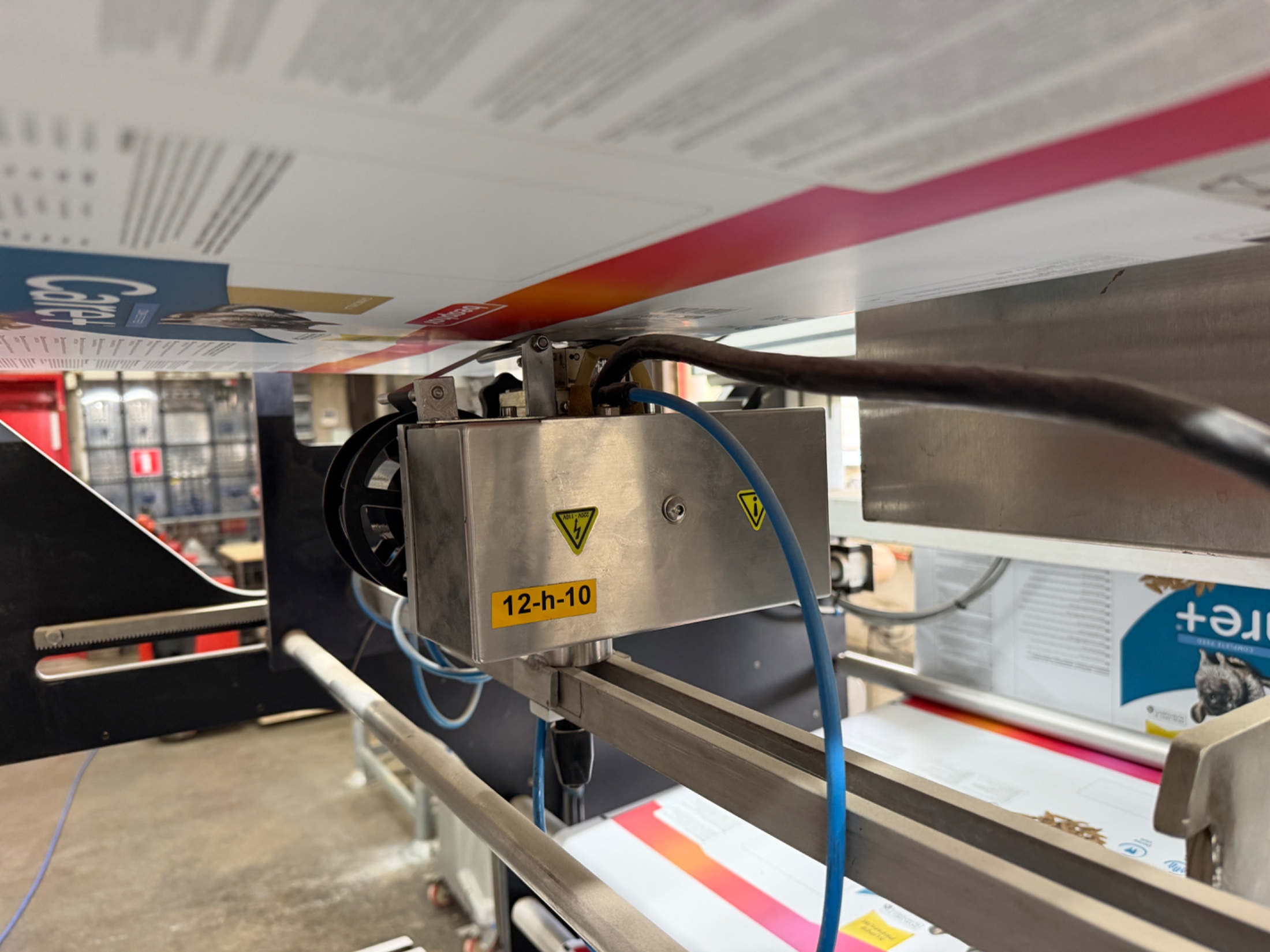

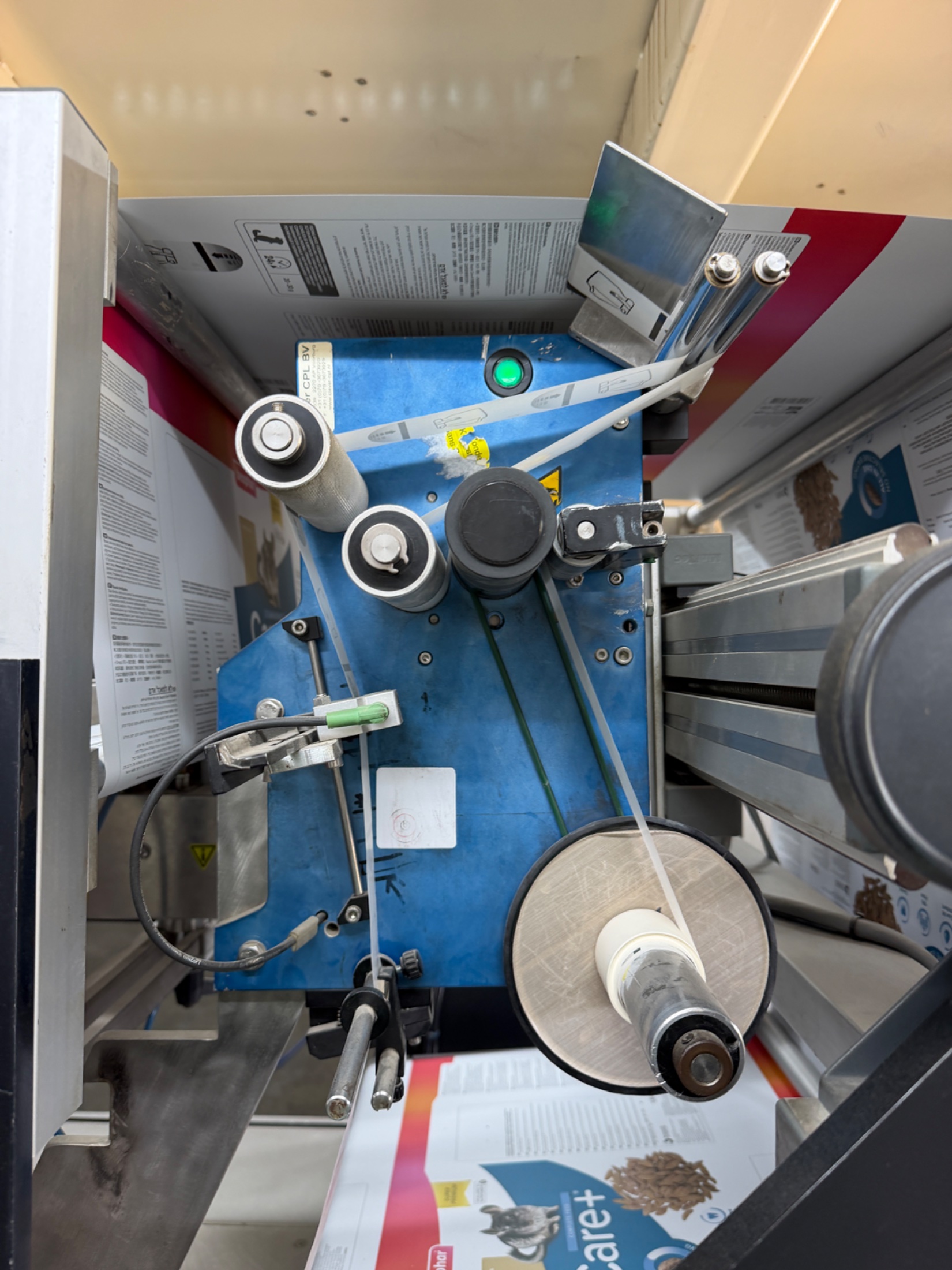

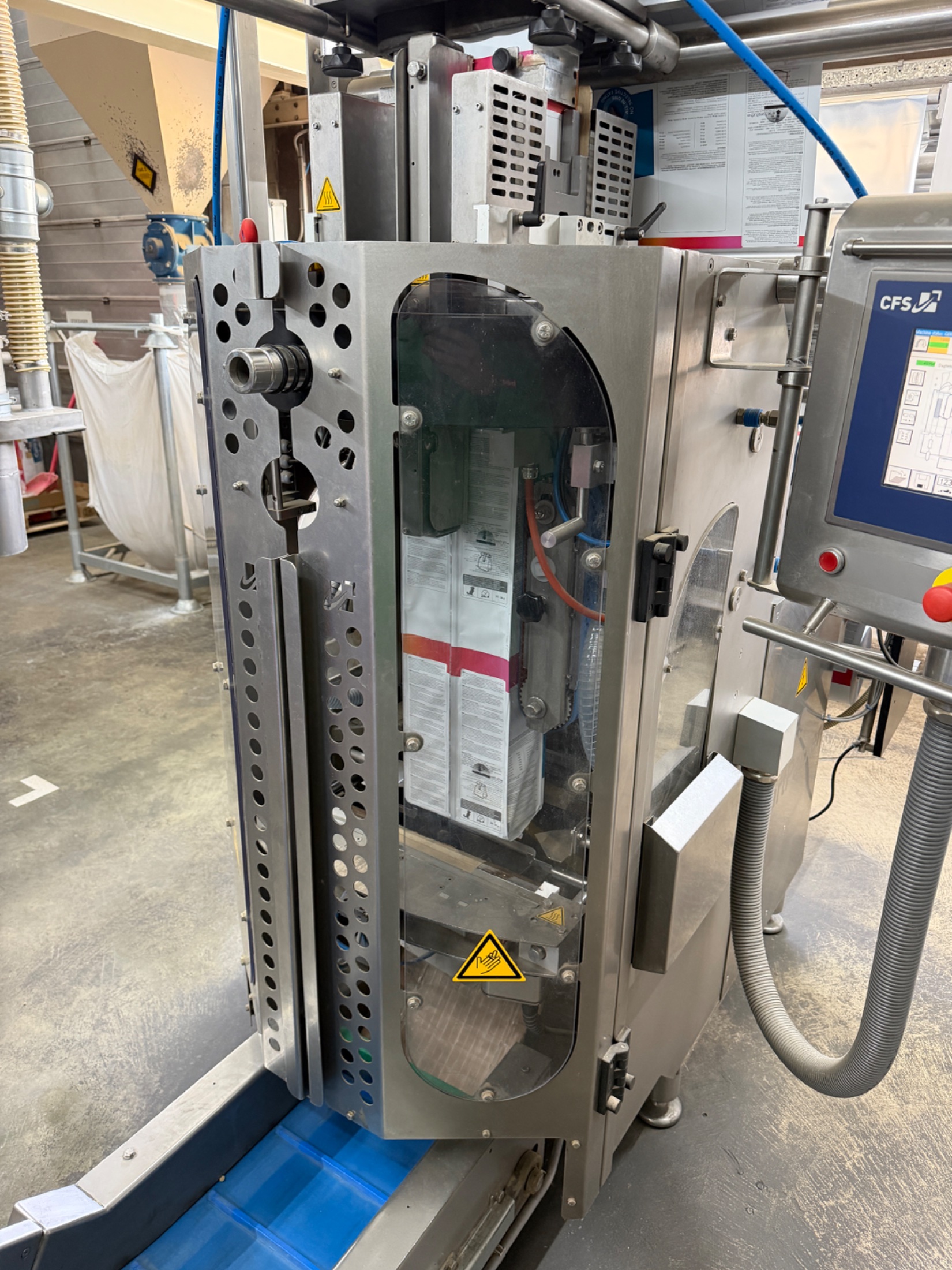

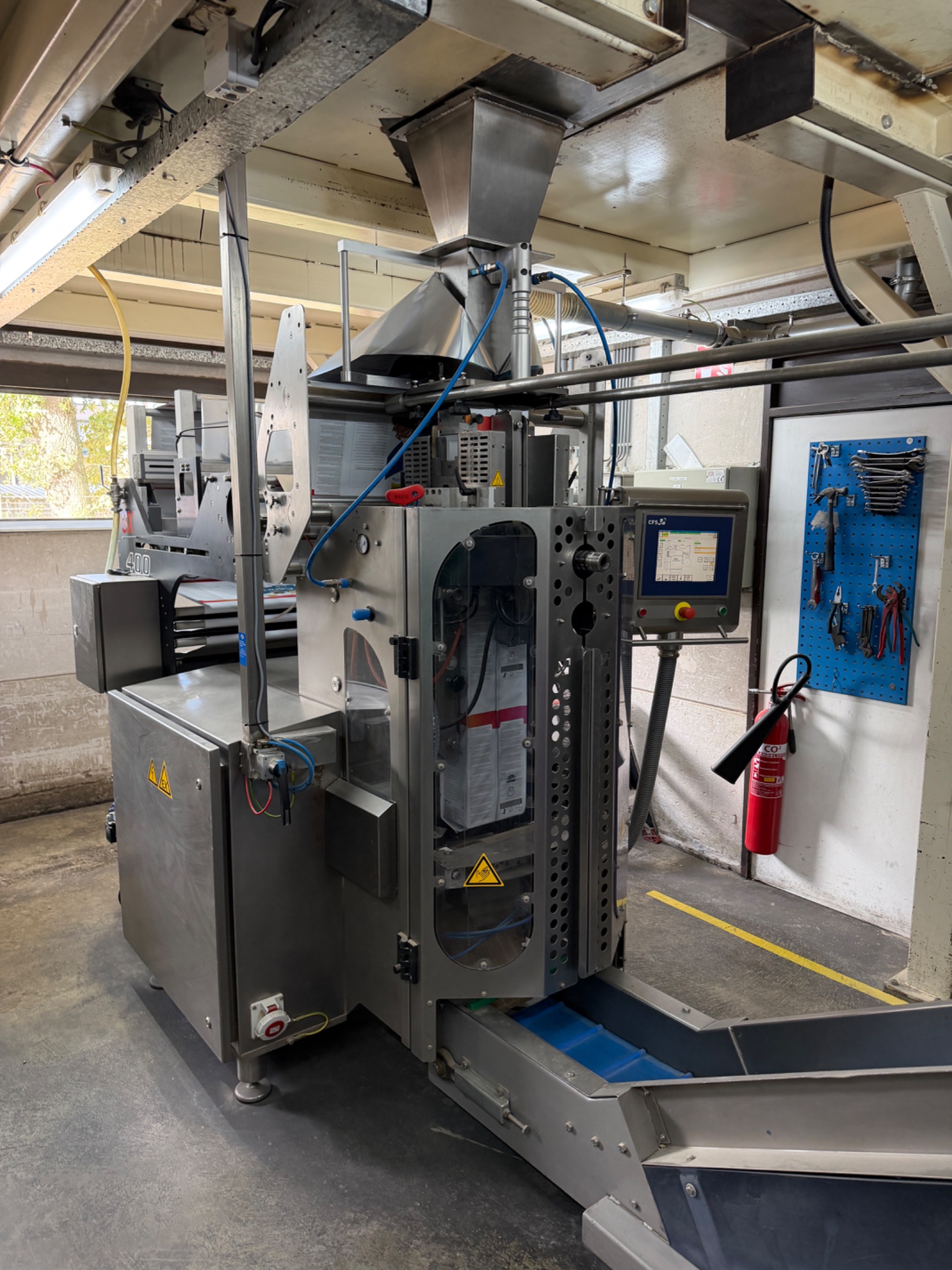

This automatic line weighs products, packs them in bags and places the bags in shipping cases, in one continuous process. On top sits a Yamato Dataweigh multihead weigher in stainless steel, which doses the product accurately into a GEA CFS SmartPacker SX400. This vertical form-fill-seal machine has the Quattro Seal version, for four-side sealed bags that stand up well. The SmartPacker has automatic film unwinding, integrated sealing units and a touchscreen with recipe management.

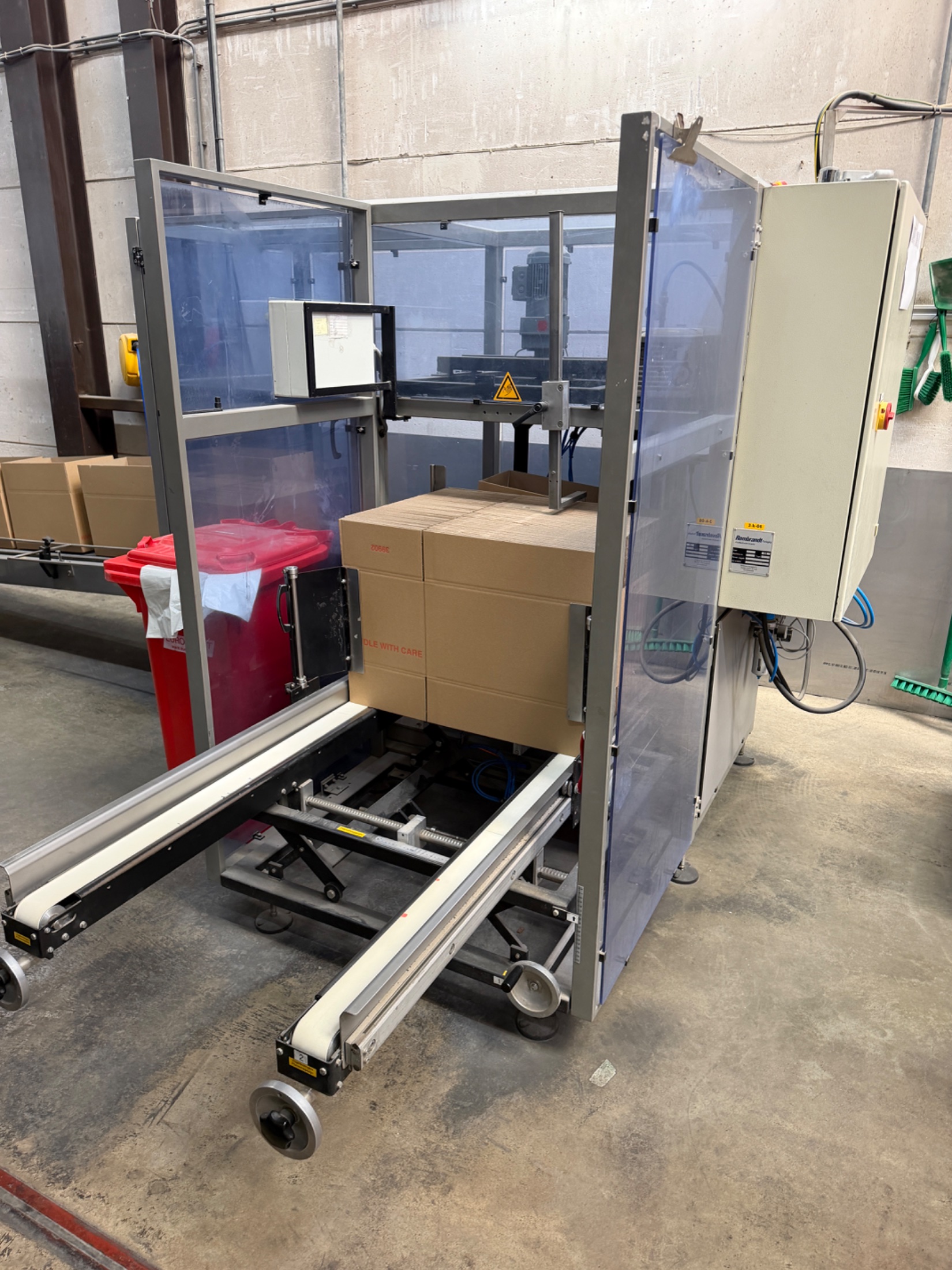

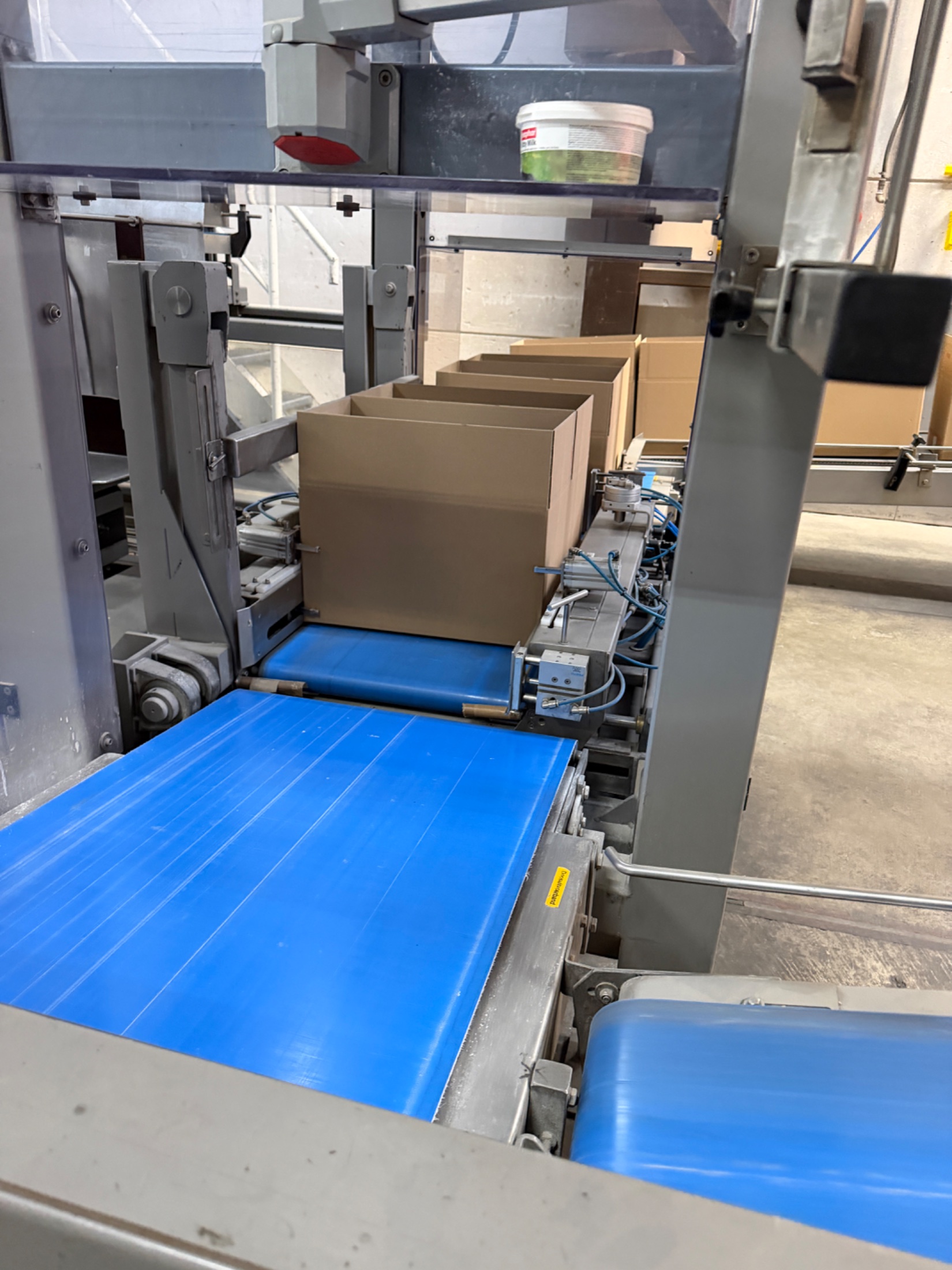

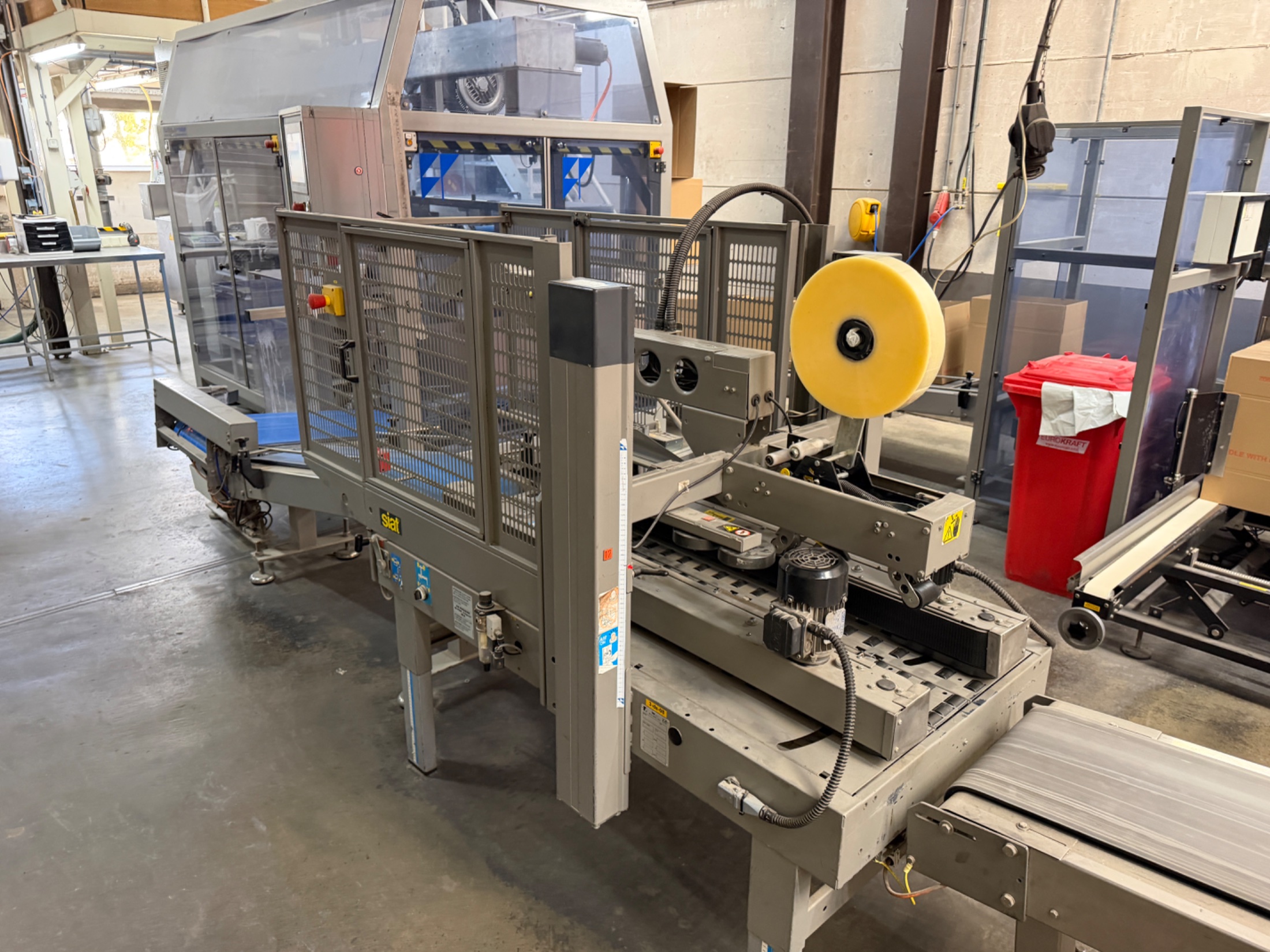

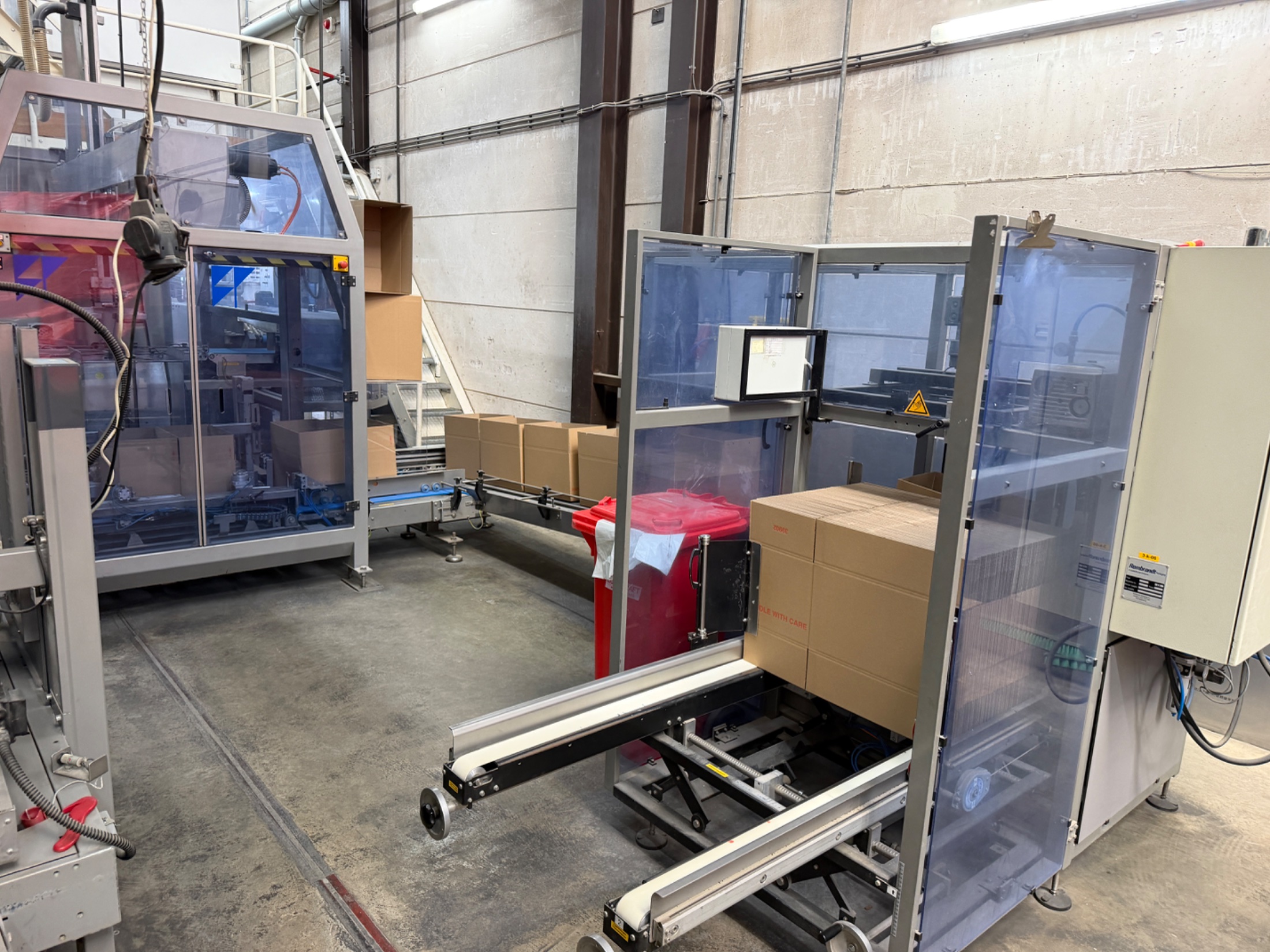

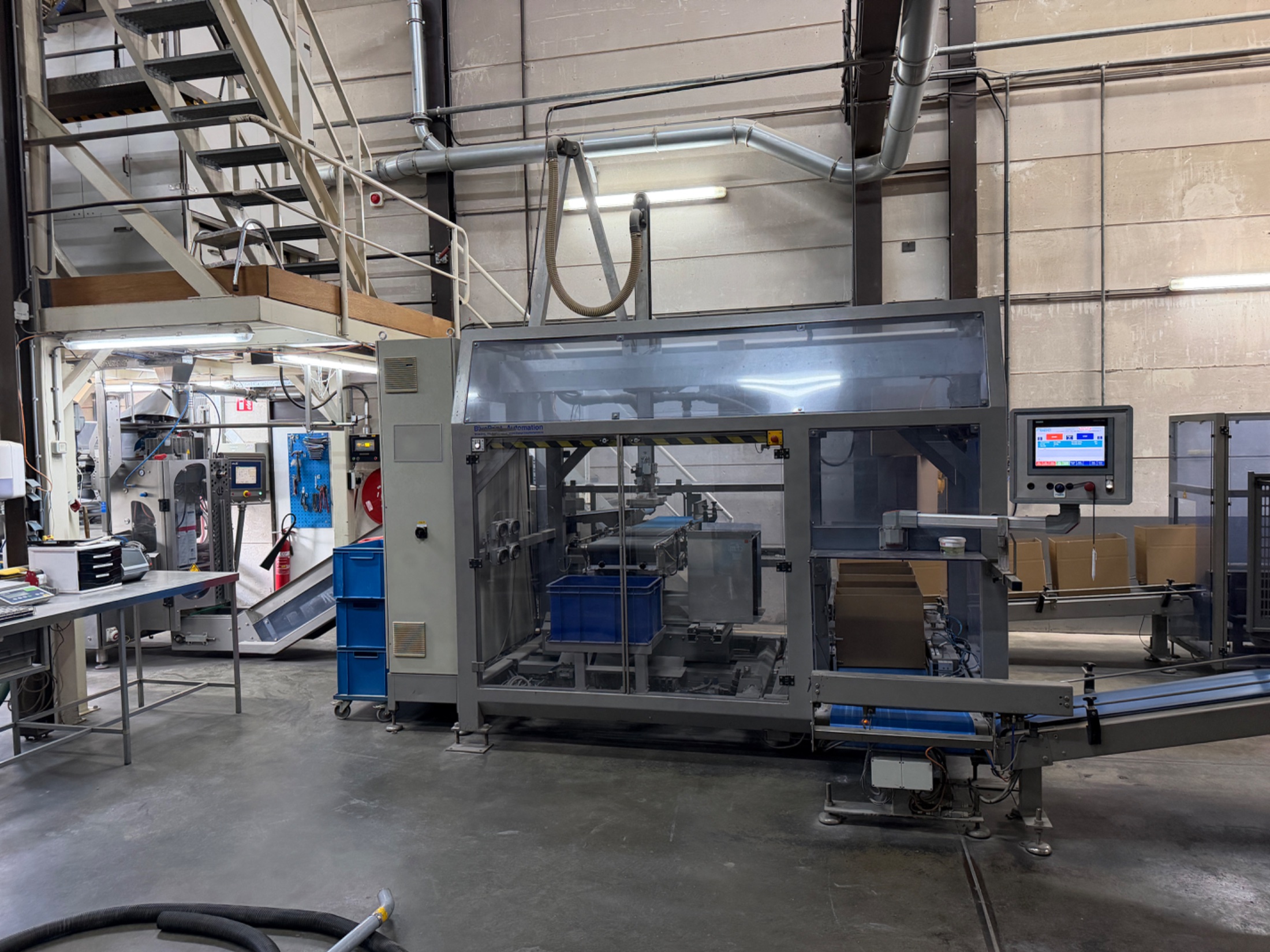

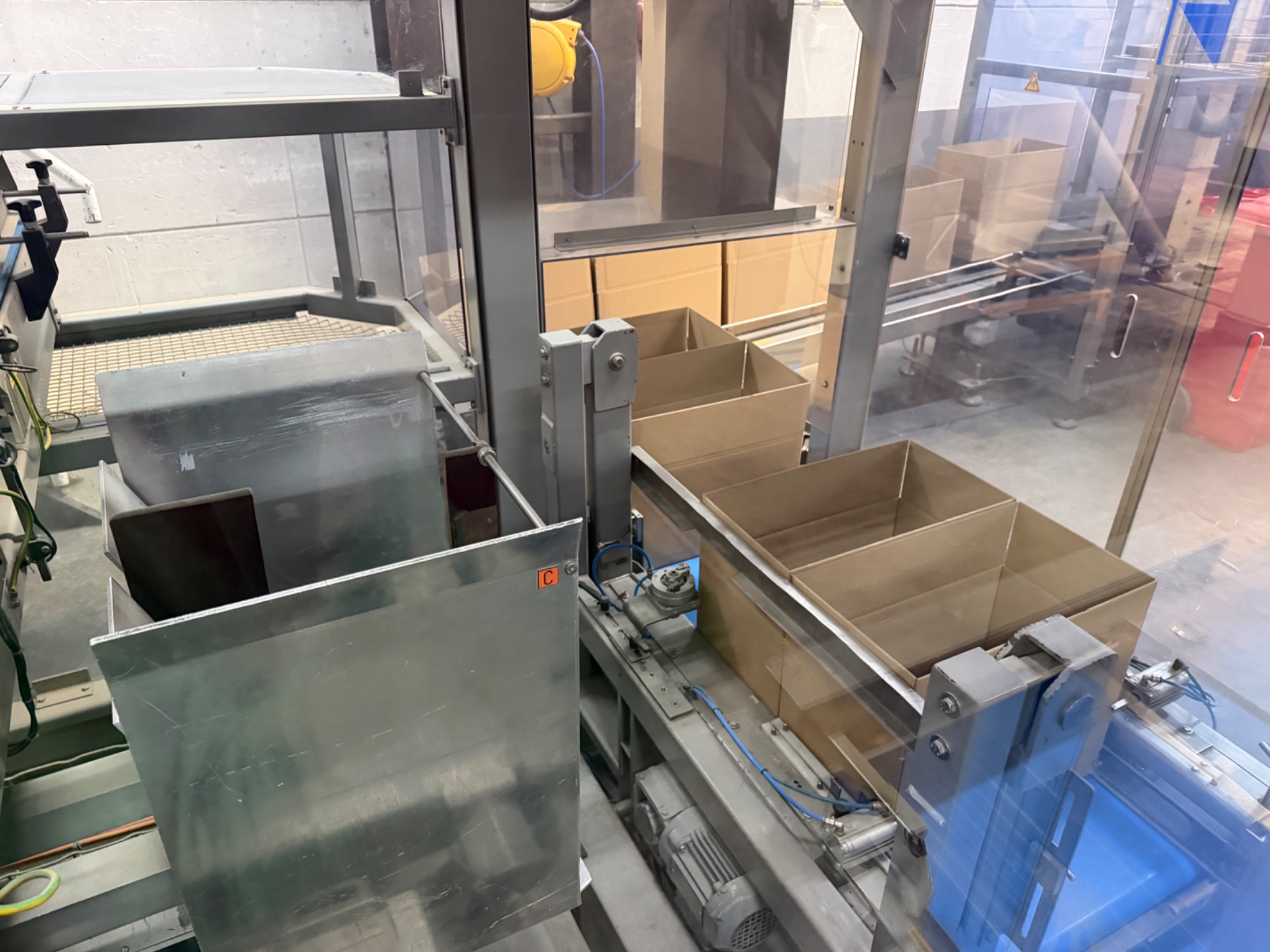

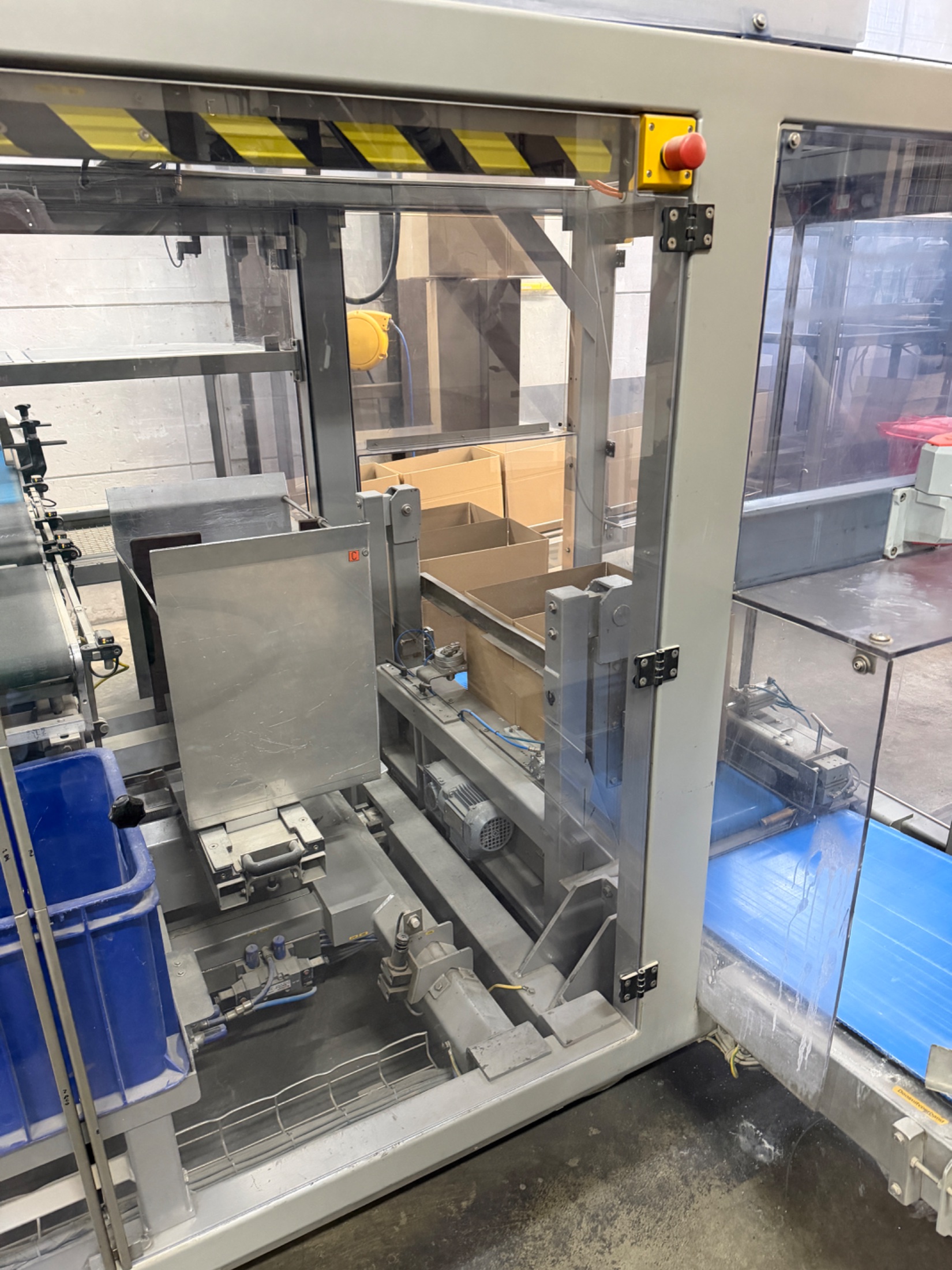

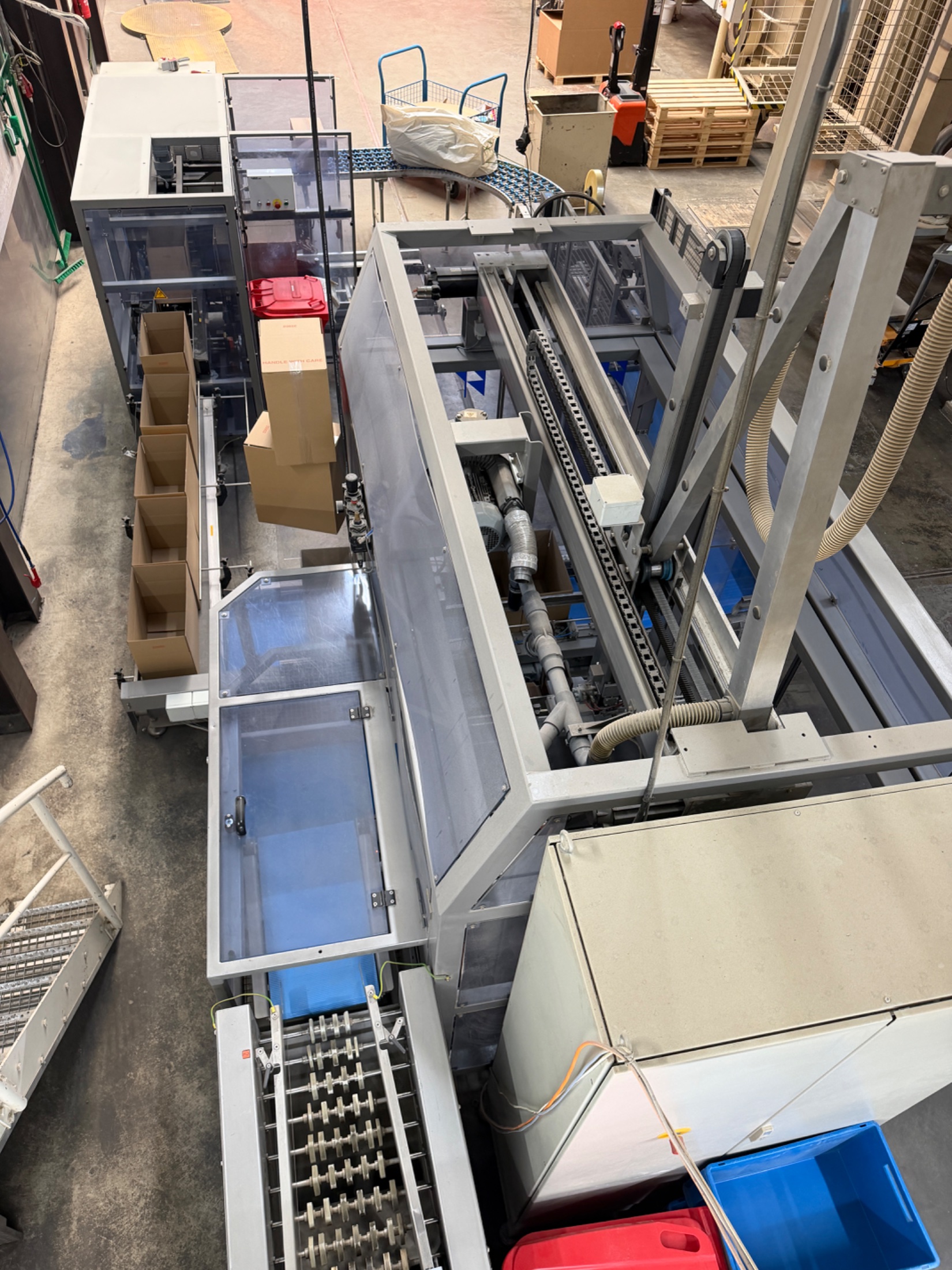

After packing, a BluePrint Automation HVP system from 2003 takes care of product handling and transport, after which a Rembrandt Packaging / Lantech case packer from 2005 places the bags in cases automatically. The associated conveyor systems are included. The line suits a range of dry and free-flowing products, depending on configuration, and is only offered as a complete set. It is a way to expand your packing capacity without having to source and combine separate machines.
Related machines
New

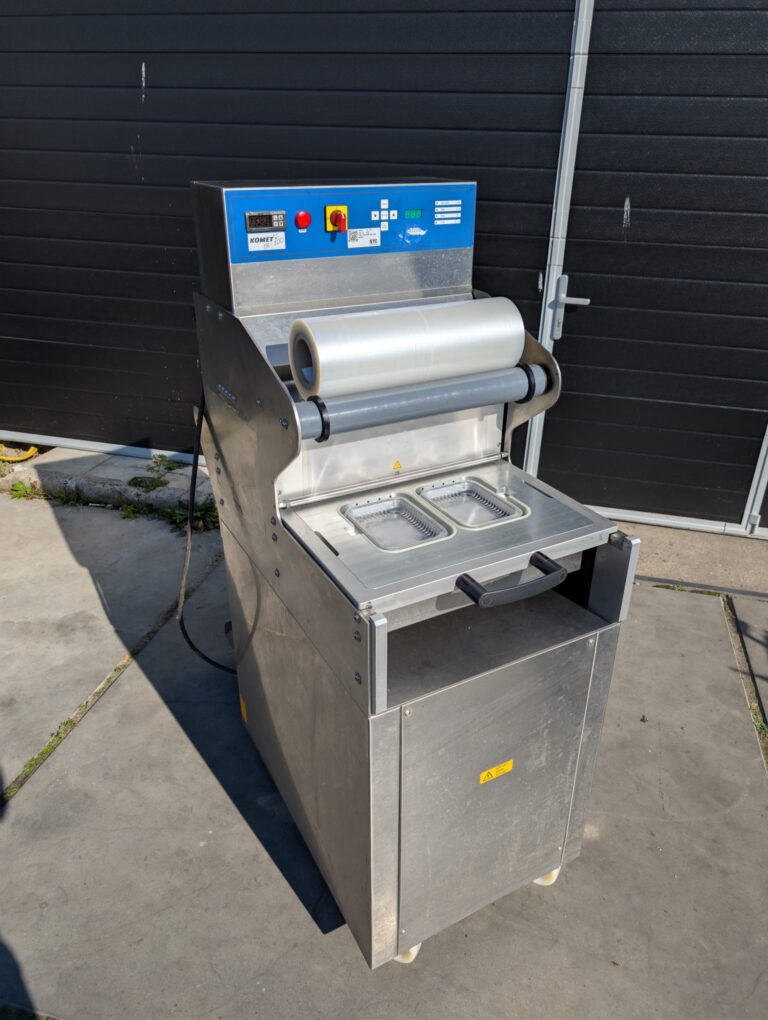

Komet TS 100 semi-automatic tray sealer
