Compare the Tray sealers range
Every model in this range side by side. Click a model to open its page.
| Specification | ATLAS 360 | BS 5 ECO | BS 10 ECO | BS 25 Basic | BS 25 Pro | BS 40 Maxi Basic | BS 40 Maxi Pro | BS 40 Maxi Spin | BS 40 Maxi XL | BS 47 | BS 52 | VA 1 | VA 1-2 | VA 3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Fabrikant | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss |
| Kamerafmetingen | 470 x 370 x 150 mm | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Machineafmetingen | 840 x 1140 x 1600 mm | 580 x 855 x 570 mm | 516 × 970 × 790 mm | 560 × 970 × 1450 mm | 640 × 1140 × 1500 mm | 645 × 990 × 1450 mm | 790 × 1140 × 1500 mm | 1200 x 1280 x 1730 mm | 1020 x 1240 x 1788 mm | 2,50 × 0,99 × 1,66 m | 2,50 × 0,99 × 1,66 m | 340 × 505 × 350 mm | 600 × 340 × 350 mm | 800 × 370 × 450 mm |
| Max. schaalhoogte | 150 mm | – | 115 mm | 115 mm | 115 mm | 115 mm | 115 mm | 110 mm | 125 mm | op aanvraag | op aanvraag | 58 mm | 58 mm | 58 mm |
| Vacuümpomp | 63 m³/h | 16 m³/h | – | – | – | – | – | – | – | – | – | – | – | – |
| Gewicht | ca. 490 kg | 58 kg | 74 kg | 180 kg | 205 kg | 205 kg | 250 kg | 435 kg | 460 kg | 550 kg | 410 kg | 14 kg | 14 kg | 24 kg |
| Voedingsspanning | 3 fasen, 230/400 V, 50 Hz | 1 fase, 230 V, 50 Hz | 1 fase, 230/400 V, 50 Hz | 1 fase, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 230 V/50 Hz | 230 V/50 Hz | 230 V/50 Hz |
| Snelheid | Bis zu 5 pro Minute | – | – | – | – | – | – | – | – | – | – | – | – | – |
| Seallengte | – | 400 × 285 mm | 400 × 285 mm | – | – | – | – | – | – | – | – | – | – | – |
| Max. sealformaat | – | – | 365 × 280 mm | 365 × 280 mm | 350 × 275 mm | 400 × 285 mm | 400 × 285 mm | 360 x 260 mm | 500 x 300 mm | 400 × 275 mm | 400 × 275 mm | 250 × 230 mm | 250 × 230 mm | 335 × 265 mm |

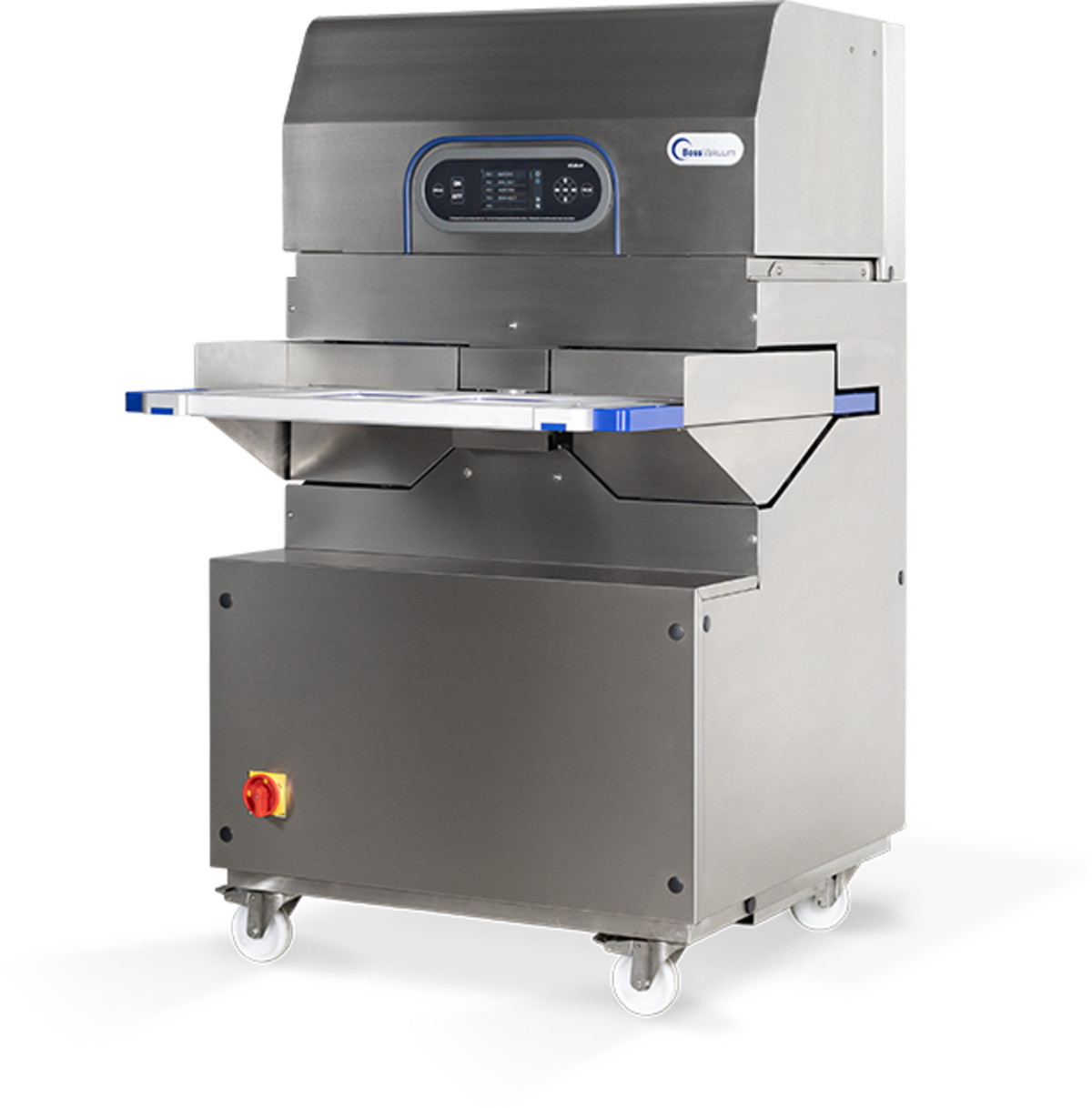

Features
- Easy-to-open hood for film and tool changes
- ATLAS-A1 sensor control with 5-inch display and intuitive user interface
- Hygiene insert incl. insertion plates in the chamber
- Extra smooth-running drawer
- Mobile, plug-and-play unit with built-in vacuum pump
