Find the right size
Every model with the sizes that decide between them. Switch range to look at another type of machine.
Basic Line7Tabletop machines7Floorstanding machines6Double chamber machines5Automatic machines3Vertical and special purpose machines10Tray sealers14Shrink dip tanks and shrink tunnels7
- AVS 1600
- MAX-F 50 D

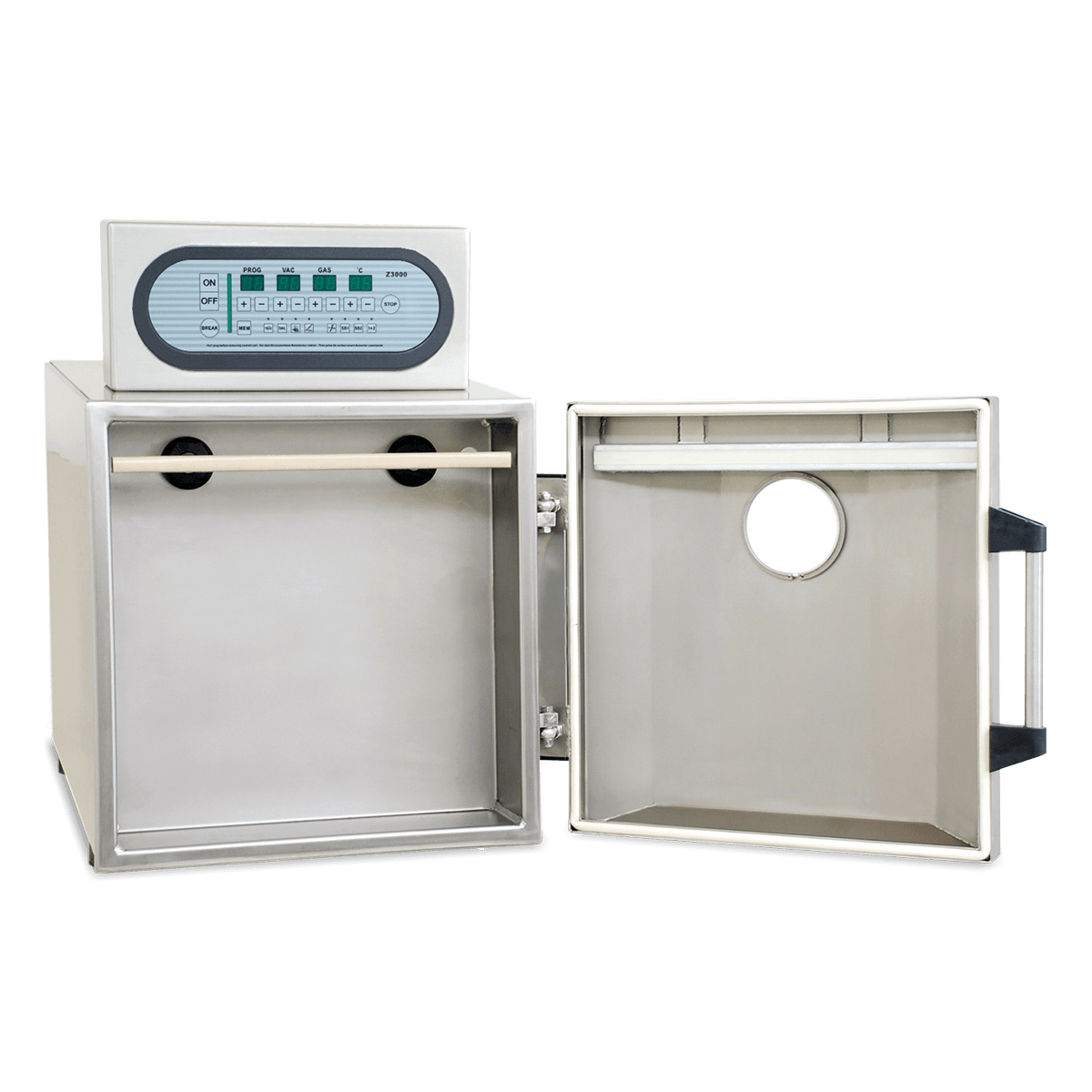

- V 42 VA
- V 50 VA
- V 810 VA
- VX 630 VA
- NE 14 VA
- NE 63 VA
- Clipapparaat handmatig
- Clipapparaat elektrisch
Compare the Vertical and special purpose machines range
Every model in this range side by side. Click a model to open its page.
| Specification | AVS 1600 | MAX-F 50 D | V 42 VA | V 50 VA | V 810 VA | VX 630 VA | NE 14 VA | NE 63 VA | Clipapparaat handmatig | Clipapparaat elektrisch |
|---|---|---|---|---|---|---|---|---|---|---|
| Fabrikant | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss | Boss |
| Kamerafmetingen | 450 x 550 x 700 mm | 530 x 545 x 110 mm | 440 x 445 x 180 mm | 530 x 545 x 185 mm | 850 x 670 x 200 mm | 740 x 860 x 230 mm | 825 x 660 x 200/300/420 mm | 740 x 860 x 230 mm | – | – |
| Machineafmetingen | 700 x 750 x 1450 mm | 740 x 820 x 1010 mm | 600 x 700 x 700 mm | 650 x 700 x 1530 mm | 1070 x 1000 x 1980 mm/2200 mm met geopend deksel | 1600 x 1100 x 1300 mm | 910 x 930 x 990/1200 mm | 1600 x 1100 x 1300 mm | – | – |
| Vacuümpomp | 25 of 63 m³/h | 25 m³/h of 63 m³/h | 21 m³/h | 25 m³/h of 63 m³/h | 100 m³/h of 160 m³/h | 100 m³/h of 160 m³/h | 100 m³/h of 160 m³/h | 100 m³/h of 160 m³/h | – | – |
| Gewicht | 355 kg of 425 kg | 125 kg of 145 kg | 85 kg | 150 kg of 170 kg | 400 kg of 470 kg | 340 kg of 410 kg | 320 kg of 390 kg | 340 kg of 410 kg | – | – |
| Voedingsspanning | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 1 fase, 230 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | 3 fasen, 230/400 V, 50 Hz | – | – |
| Seallengte | – | 500 mm | 420 mm | 520 mm | 810 mm | 630 mm | 650 mm of 800 mm | 630 mm | – | – |
| Besturing | – | Z 3000 | Z 3000 | Z 3000 | Z 3000 | Z 3000 | Z 3000 | Z 3000 | – | – |
| Sealsysteem | – | dubbele sealnaad of enkele scheidingssealnaad | dubbele sealnaad | dubbele sealnaad | dubbele sealnaad of enkele scheidingssealnaad | dubbele sealnaad of enkele scheidingssealnaad | enkele scheidingssealnaad | dubbele sealnaad | – | – |
Sealing bar
The length of seal the machine makes in one cycle. It sets the widest bag you can close in a single go.
See the sealing systemsFeatures
- High-quality Busch vacuum pump
- Robust stainless-steel door – with inspection window upon request
- High pressure seal welding
- Adjustable insert plate for height adjustment
